Components [01/2017 - ]

Fig 1: Power Window Regulator Motor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	NO. 2 DECK BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

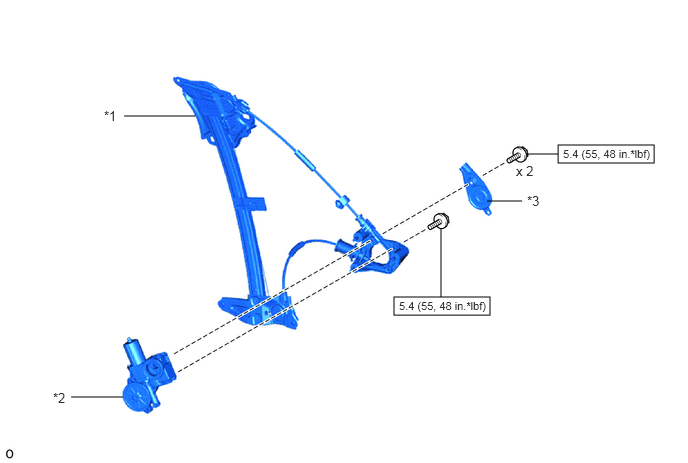

Fig 2: Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 2)

*1	FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY LH	*2	POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
*3	HOUSING CAP	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
