Components [01/2017 - ]

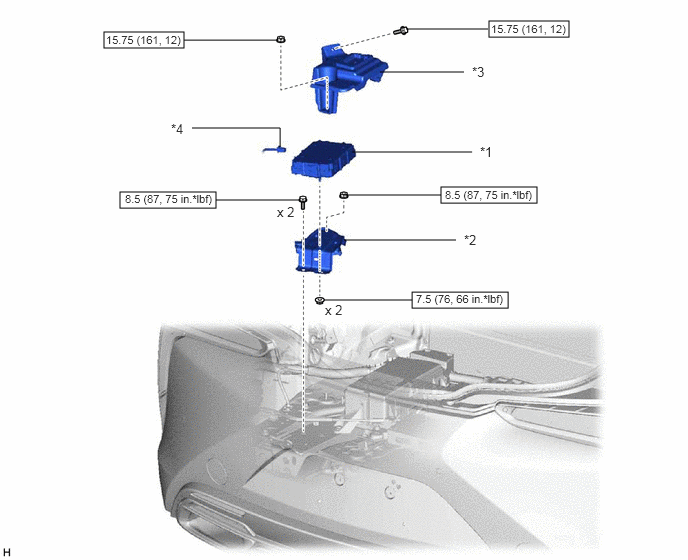

Fig 1: Brake Control Power Supply Replacement Components With Torque Specifications

*1	BRAKE CONTROL POWER SUPPLY WITH BRACKET ASSEMBLY	*2	FUEL PUMP CONTROL ECU BRACKET
*3	NO. 1 DECK BOARD BRACKET LH	*4	CONNECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
