Components [05/2023 - ]

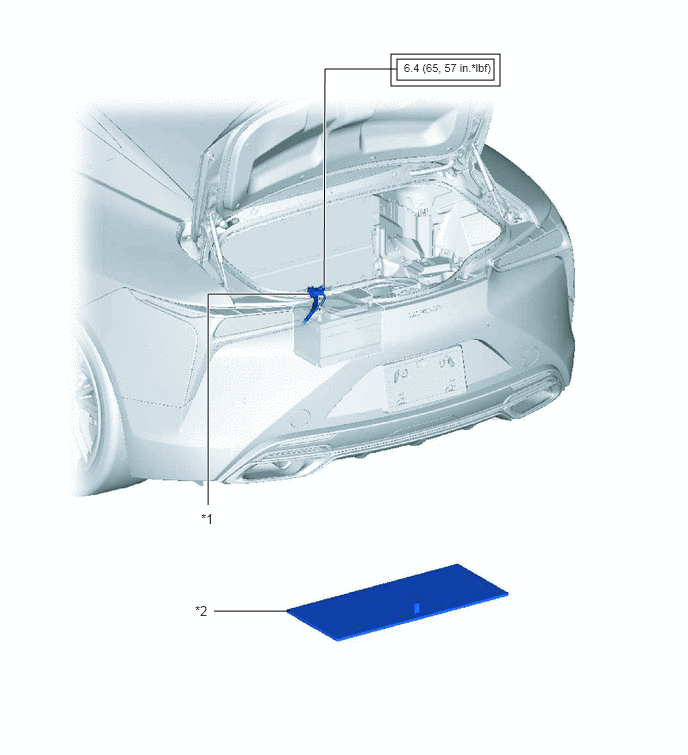

Fig 1: Integration Control Supply Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NEGATIVE AUXILIARY BATTERY TERMINAL	*2	NO. 2 DECK BOARD
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	-	-

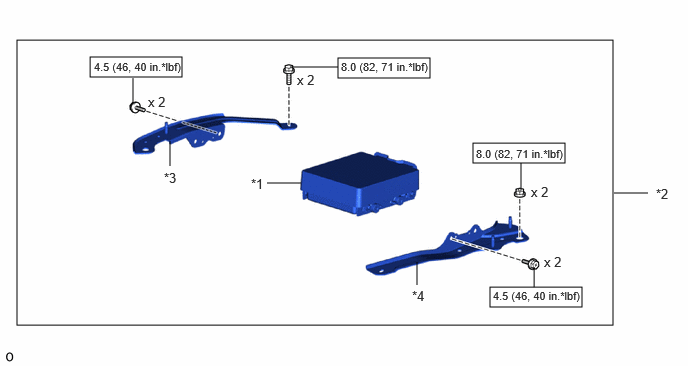

Fig 2: Integration Control Supply Replacement Components With Torque Specifications (2 Of 2)

*1	INTEGRATION CONTROL SUPPLY	*2	INTEGRATION CONTROL SUPPLY WITH BRACKET
*3	NO. 1 INTEGRATION CONTROL SUPPLY BRACKET	*4	NO. 2 INTEGRATION CONTROL SUPPLY BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
