On-Vehicle Inspection [01/2017 - ]: Procedure

  1. REMOVE V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 8 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 8 [05/2023 - ]

  2. REMOVE CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to REMOVAL [01/2017 - ]

  3. INSPECT CAMSHAFT TIMING GEAR BOLT

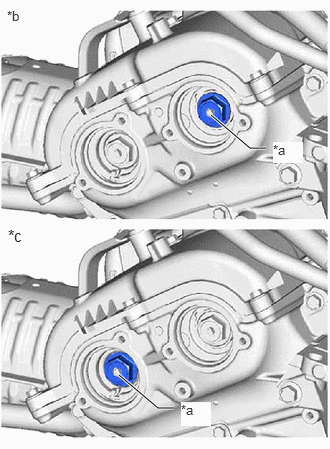

    1. GTY785486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Plunger
      *b Intake Side
      *c Exhaust Side

      Check the stroke of the plunger in the center of the camshaft timing gear bolt.

      Standard Stroke

      2.2 mm (0.0866 in.) or more

      HINT:

      When pressing the plunger, there may be a stepped feeling. This is not a malfunction.

  4. INSTALL CAMSHAFT TIMING OIL CONTROL SOLENOID ASSEMBLY

    Refer to INSTALLATION [01/2017 - ]

  5. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 118 [01/2017 - 06/2019] , or refer to PROCEDURE - Step 118 [06/2019 - 05/2023] , or refer to PROCEDURE - Step 118 [05/2023 - ]
