Components [01/2017 - ]

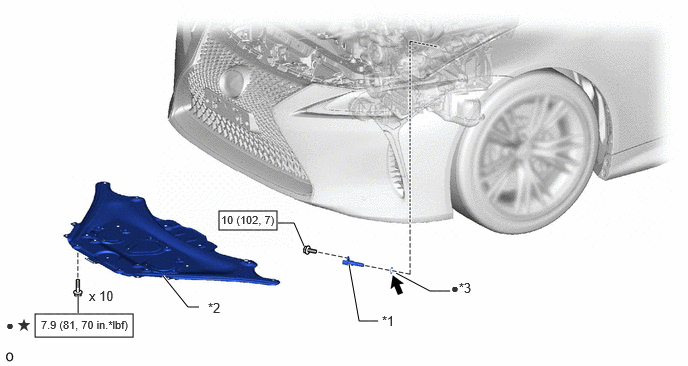

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications
GTY1131134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CRANKSHAFT POSITION SENSOR *2 NO. 2 ENGINE UNDER COVER ASSEMBLY
*3 O-RING - -
N.m (kgf/cm, ft.lbf): Specified torque • Non-reusable part
* Precoated part Engine Oil
