Removal [01/2017 - ]: Procedure

  1. REMOVE FUEL INJECTOR ASSEMBLY (for Direct Injection)

    Refer to REMOVAL [01/2017 - 05/2023] , or refer to REMOVAL [05/2023 - ]

  2. REMOVE KNOCK CONTROL SENSOR

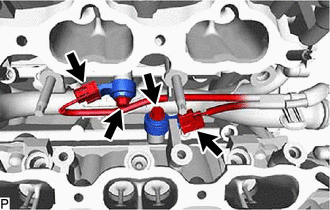

    1. Disconnect the 2 knock control sensor connectors.
      GTY811248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts and 2 knock control sensors.
      NOTE:

      If a knock control sensor has been struck or dropped, replace it.
