Removal [01/2017 - ]: Procedure

  1. REMOVE MASS AIR FLOW METER SUB-ASSEMBLY

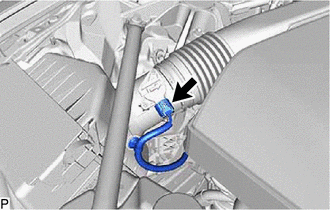

    1. Disconnect the mass air flow meter sub-assembly connector.
      GTY835183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

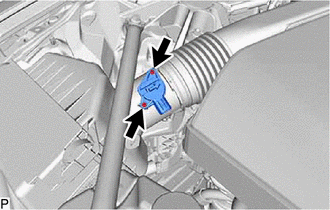

    2. Remove the 2 screws and mass air flow meter sub-assembly.
      GTY835184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If the mass air flow meter sub-assembly has been struck or dropped, replace it.
