Components [01/2017 - ]

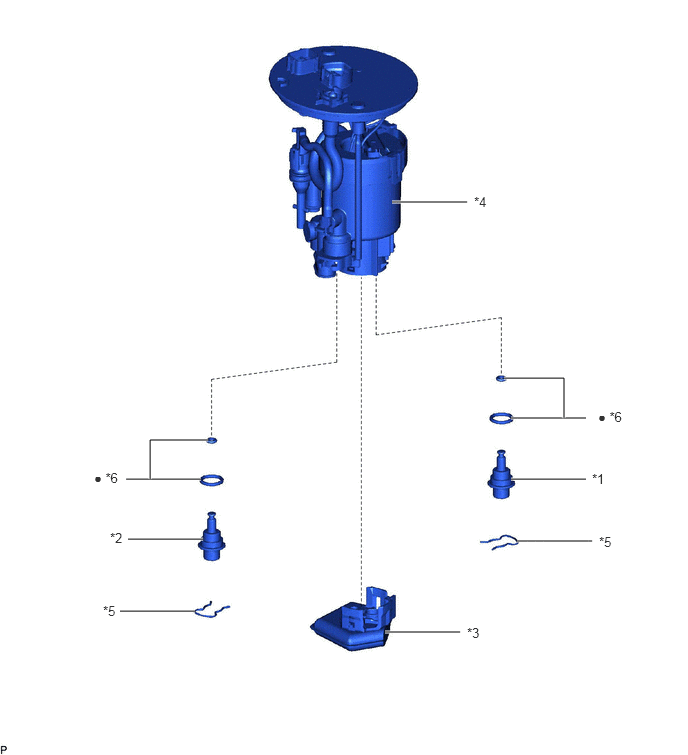

Fig 1: Fuel Main Valve Replacement Components

*1	FUEL MAIN VALVE ASSEMBLY (for Low Pressure)	*2	FUEL MAIN VALVE ASSEMBLY (for High Pressure)
*3	FUEL PUMP FILTER	*4	FUEL SUCTION PLATE SUB-ASSEMBLY (FUEL FILTER)
*5	CLIP	*6	O-RING
•	Non-reusable part	-	-
