Components [01/2017 - ]

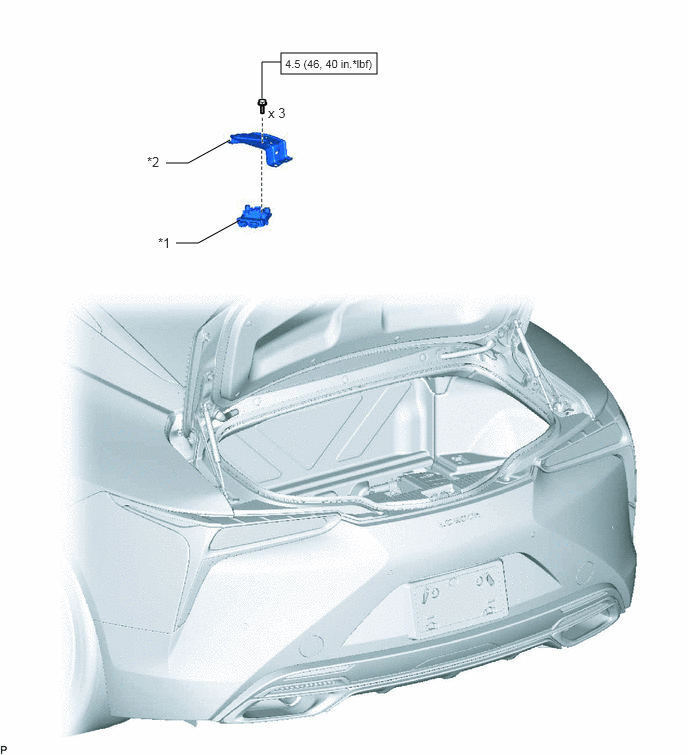

Fig 1: Fuel Pump ECU Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL PUMP CONTROL ECU	*2	FUEL PUMP CONTROL ECU BRACKET
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
