Components [05/2023 - ]

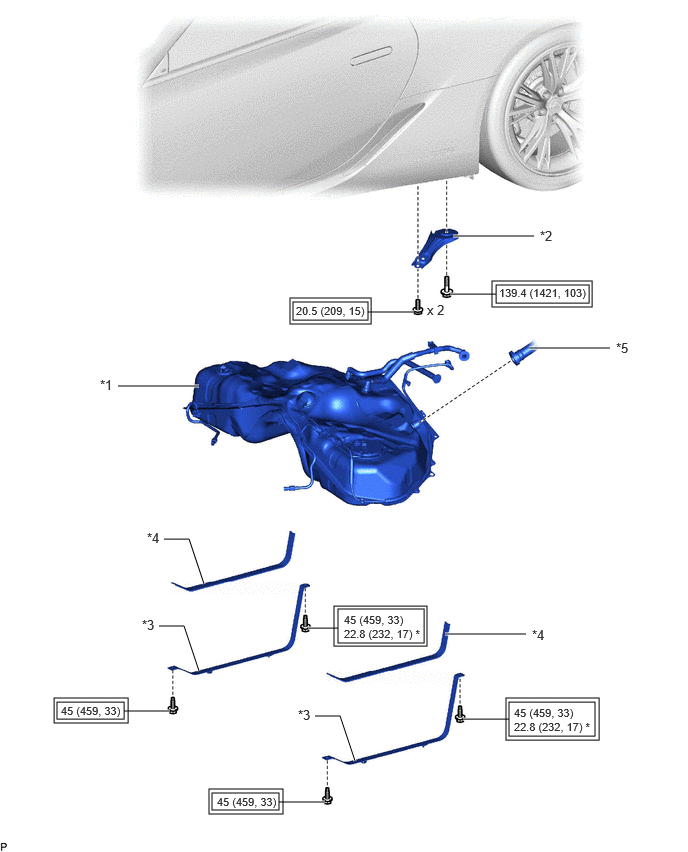

Fig 1: Fuel Tank Replacement Components With Torque Specifications [05/2023 - ] (1 Of 2)

GTY1241768

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL TANK ASSEMBLY	*2	REAR LOWER SUSPENSION MEMBER STOPPER LH
*3	FUEL TANK BAND	*4	FUEL TANK BAND SEAT
*5	FUEL TANK TO FILLER PIPE HOSE	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	*	for use with SST and union nut wrench

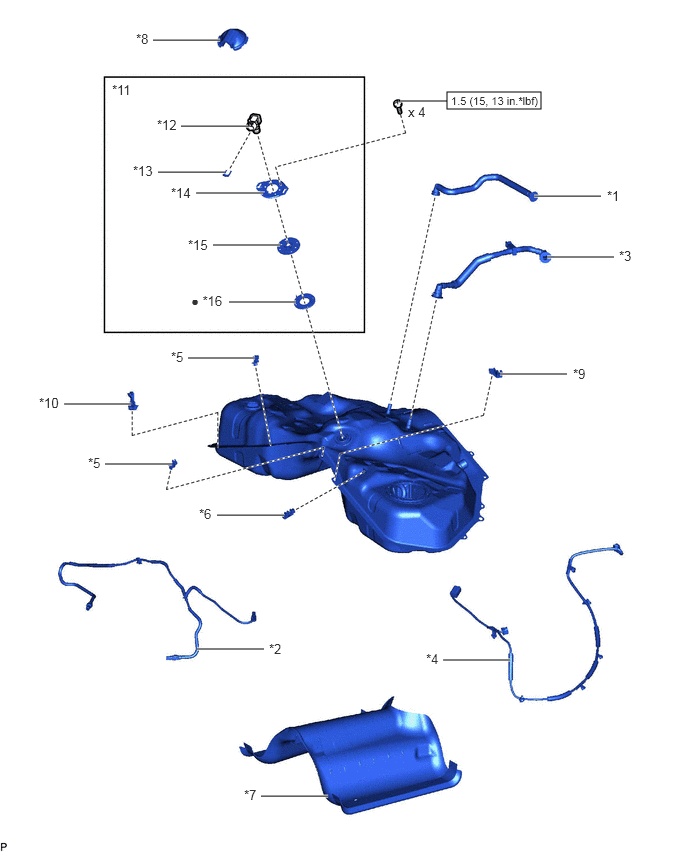

Fig 2: Fuel Tank Replacement Components With Torque Specifications [05/2023 - ] (2 Of 2)

GTY796132

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FUEL SUCTION TUBE SUB-ASSEMBLY	*2	FUEL TANK MAIN TUBE SUB-ASSEMBLY
*3	FUEL TANK VENT HOSE	*4	FUEL TANK WIRE
*5	FUEL TUBE CLAMP BRACKET	*6	FUEL TUBE GROMMET
*7	NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY	*8	NO. 3 FUEL TANK PROTECTOR
*9	NO. 3 FUEL TUBE CLAMP	*10	NO. 4 FUEL TUBE CLAMP
*11	REAR FUEL TANK SIDE PLATE SUB-ASSEMBLY	*12	FUEL TANK PRESSURE SENSOR
*13	TUBE JOINT CLIP	*14	FUEL TANK PROTECTOR PLATE
*15	FUEL TANK EVAP TUBE SUPPORT PLATE	*16	FUEL TANK BREATHER TUBE GASKET
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
