Installation [01/2017 - 05/2023]: Procedure

  1. INSTALL NO. 1 FUEL TANK PROTECTOR SUB-ASSEMBLY
    1. Install the No. 1 fuel tank protector sub-assembly to the fuel tank assembly.
  2. INSTALL FUEL TUBE CLAMP BRACKET
    1. Install the 2 fuel tube clamp brackets to the fuel tank assembly.
  3. INSTALL FUEL TUBE GROMMET
    1. Install the fuel tube grommet to the fuel tank assembly.
  4. INSTALL NO. 4 FUEL TUBE CLAMP
    1. Install the No. 4 fuel tube clamp to the fuel tank assembly.
  5. INSTALL NO. 3 FUEL TUBE CLAMP
    1. Install the No. 3 fuel tube clamp to the fuel tank assembly.
  6. INSTALL FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Attach the 6 clamps and install the fuel tank main tube sub-assembly to the fuel tank assembly.
  7. INSTALL FUEL TANK WIRE
    1. Attach the 5 clamps and install the fuel tank wire from the fuel tank assembly.
  8. INSTALL REAR FUEL TANK SIDE PLATE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 1

  9. INSTALL NO. 3 FUEL TANK PROTECTOR

    Refer to PROCEDURE - Step 2

  10. INSTALL FUEL SUCTION TUBE SUB-ASSEMBLY
    1. Install the fuel suction tube sub-assembly to the fuel tank assembly.

      Refer to PRECAUTION [01/2017 - 05/2023]

  11. INSTALL FUEL TANK VENT HOSE
    1. Install the fuel tank vent hose to the fuel tank assembly.

      Refer to PRECAUTION [01/2017 - 05/2023]

  12. INSTALL FUEL TANK ASSEMBLY
    1. Set the fuel tank assembly on an engine lifter with attachments.
    2. Using an engine lifter, slowly raise the fuel tank assembly, and then install the fuel tank assembly.
      NOTE:
      • Slowly raise the fuel tank assembly while being careful not to drop it.
      • Do not allow the fuel tank assembly to contact the vehicle, especially the rear differential carrier assembly.
    3. Connect the fuel tank to filler pipe hose and slide the retainer.

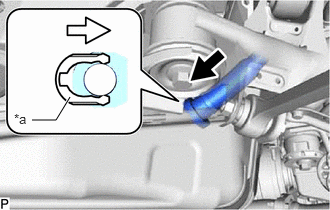

      GTY828815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
    4. Install the 2 fuel tank bands and 4 bolts.
      • SST: 09961-00950

      Torque

      Specified tightening torque

      45 N.m (459 kgf/cm, 33 ft.lbf)

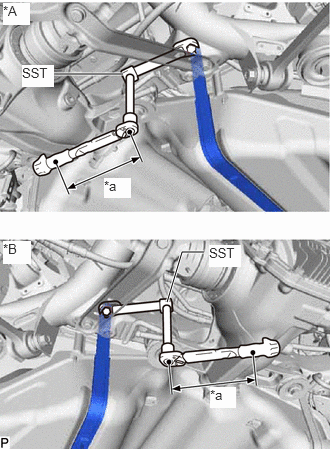

      GTY780280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *A for RH Side
      *B for LH Side
      *a Torque Wrench Fulcrum Length

      HINT:

      • Using SST and a union nut wrench (14 mm), install the rear side of the fuel tank band.
      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [01/2017 - 05/2023]

      • When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + SST (fulcrum length of 150 mm (5.906 in.)) + torque wrench (fulcrum length of 180 mm (7.087 in.)): 22.8 N.m (232 kgf/cm, 17 ft.lbf)
  13. CONNECT FUEL TANK MAIN TUBE SUB-ASSEMBLY
    1. Connect the 2 fuel tank main tube sub-assemblies.

      Refer to PRECAUTION [01/2017 - 05/2023]

  14. CONNECT FUEL TANK WIRE
    1. Connect the fuel tank solenoid main valve assembly connector.
    2. Attach the clamp.
  15. CONNECT FUEL TANK VENT HOSE
    1. Connect the fuel tank vent hose.

      Refer to PRECAUTION [01/2017 - 05/2023]

    2. Attach the clamp and connect the fuel tank vent hose to the floor.
  16. CONNECT FUEL SUCTION TUBE SUB-ASSEMBLY
    1. Connect the fuel suction tube sub-assembly.

      Refer to PRECAUTION [01/2017 - 05/2023]

  17. INSTALL REAR LOWER SUSPENSION MEMBER STOPPER LH
    1. Install the rear lower suspension member stopper LH with the 3 bolts.

      for bolt A

      Torque: 135 N.m (1377 kgf/cm, 100 ft.lbf)

      for bolt B

      Torque: 19 N.m (194 kgf/cm, 14 ft.lbf)

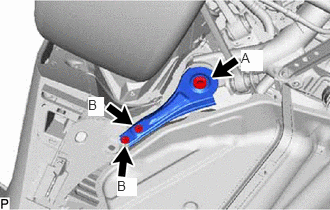

      GTY822623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL PROPELLER WITH CENTER BEARING SHAFT ASSEMBLY

    Refer to INSTALLATION [01/2017 - ]

  19. ADD FUEL
  20. INSTALL NO. 2 FUEL SENDER GAUGE ASSEMBLY

    Refer to INSTALLATION [01/2017 - 05/2023]

  21. INSTALL FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY

    Refer to INSTALLATION [01/2017 - 05/2023]

  22. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Refer to INITIALIZATION [01/2017 - 04/2020] , or refer to INITIALIZATION [04/2020 - 05/2023]

  23. INSTALL NO. 2 DECK BOARD

    Refer to PROCEDURE - Step 13 [01/2017 - 01/2021] , or refer to PROCEDURE - Step 13 [01/2021 - 05/2023]
