Components [01/2017 - 09/2018]

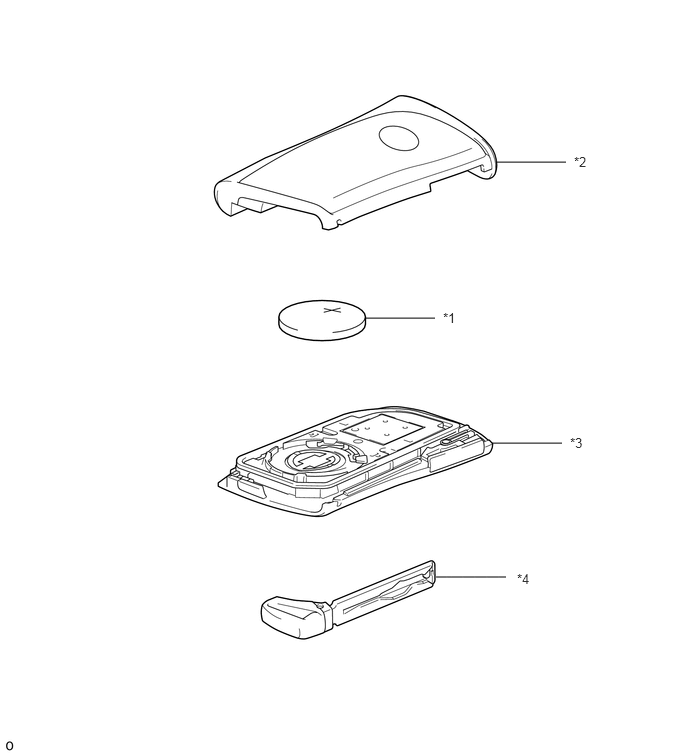

Fig 1: Transmitter Battery Replacement Components [01/2017 - 09/2018]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	TRANSMITTER BATTERY	*2	TRANSMITTER HOUSING COVER
*3	TRANSMITTER HOUSING CASE	*4	MECHANICAL KEY
