Driver Monitor Camera
›
Components [10/2023 - ]
Components [10/2023 - ]

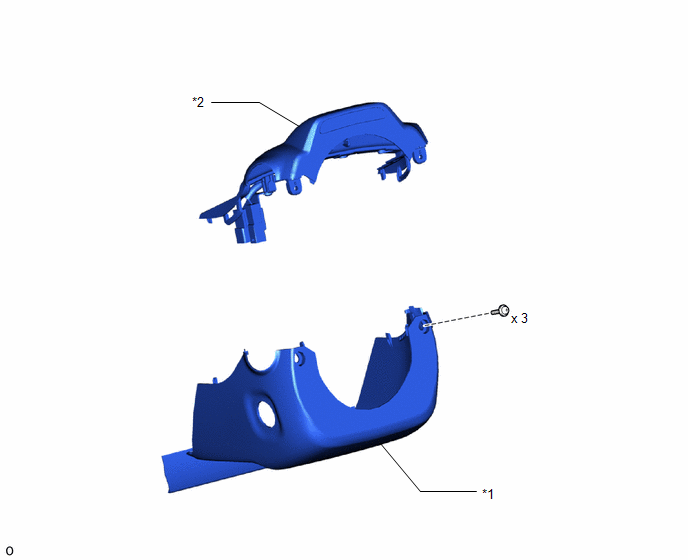

Fig 1: Driver Monitor Camera Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
LOWER STEERING COLUMN COVER
*2
UPPER STEERING COLUMN COVER

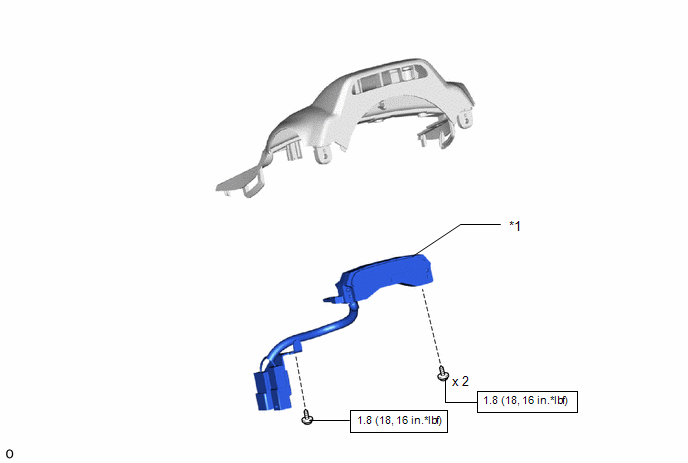

Fig 2: Driver Monitor Camera Replacement Components With Torque Specifications (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
DRIVER MONITOR CAMERA
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-
