Components [12/2017 - 10/2023]

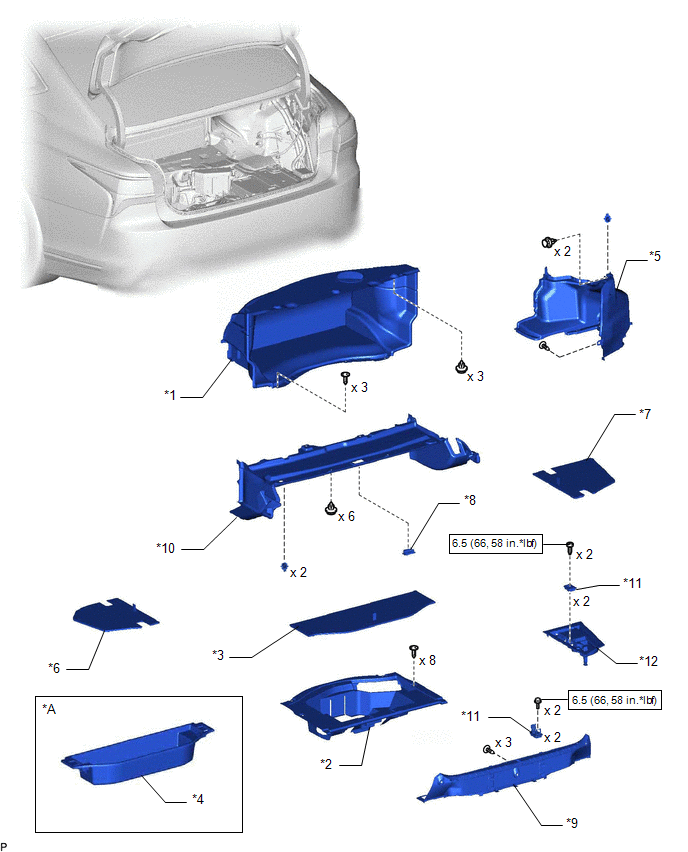

Fig 1: Sub Battery Replacement Components With Torque Specifications [12/2017 - 10/2023] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	w/o Air Suspension	-	-
*1	FRONT LUGGAGE COMPARTMENT TRIM COVER	*2	INNER LOWER LUGGAGE COMPARTMENT TRIM COVER
*3	LUGGAGE COMPARTMENT FLOOR MAT	*4	LUGGAGE COMPARTMENT TRIM BOX
*5	LUGGAGE COMPARTMENT TRIM COVER ASSEMBLY RH	*6	LUGGAGE COMPARTMENT TRIM COVER LH
*7	LUGGAGE COMPARTMENT TRIM COVER RH	*8	NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
*9	REAR FLOOR FINISH PLATE	*10	REAR LUGGAGE COMPARTMENT TRIM COVER
*11	ROPE HOOK ASSEMBLY	*12	SIDE TRIM BOX
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

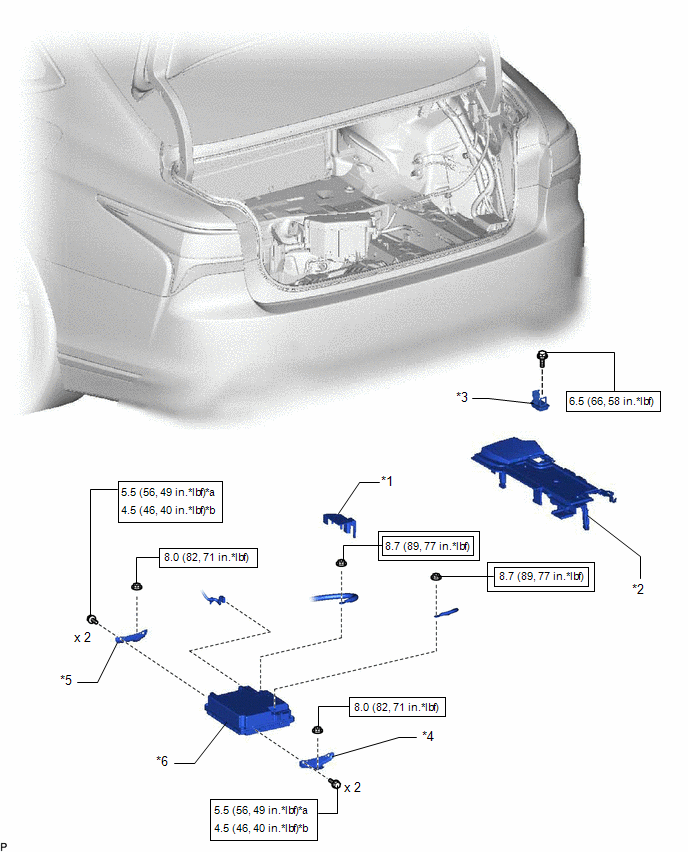

Fig 2: Sub Battery Replacement Components With Torque Specifications [12/2017 - 10/2023] (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CONNECTOR COVER	*2	REAR LUGGAGE COMPARTMENT TRAY BRACKET RH
*3	ROPE HOOK ASSEMBLY	*4	SUB-BATTERY BRACKET (Negative (-) terminal side)
*5	SUB-BATTERY BRACKET (Positive (+) terminal side)	*6	SUB-BATTERY MODULE ASSEMBLY
*a	Type A	*b	Type B
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
