Components [12/2017 - 10/2020]

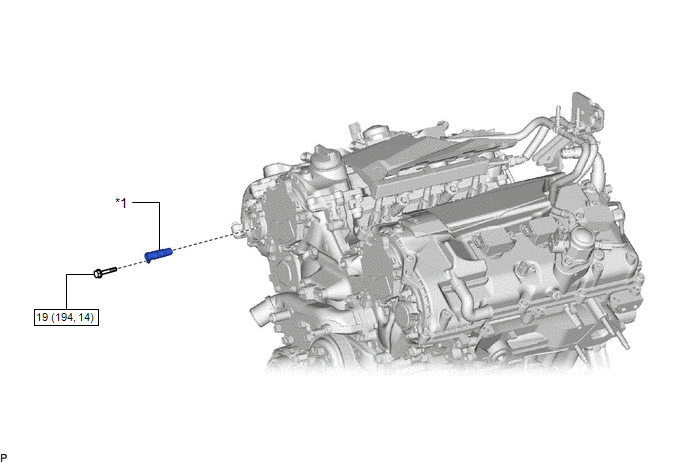

Fig 1: Camshaft Oil Control Valve (For Bank 1) Replacement Components With Torque Specifications [12/2017 - 10/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST CAMSHAFT TIMING GEAR BOLT ASSEMBLY)	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
