Components [12/2017 - 10/2020]

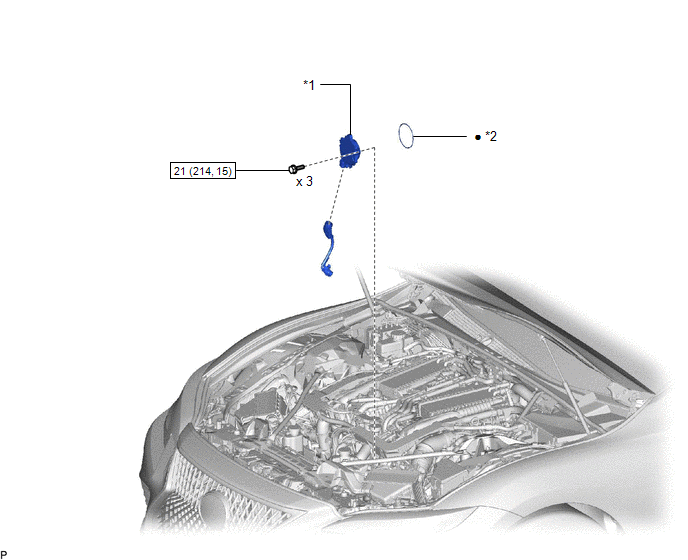

Fig 1: Camshaft Timing Control Motor (For Bank 2) Replacement Components With Torque Specifications [12/2017 - 10/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH	*2	CAM TIMING CONTROL MOTOR O-RING LH
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
