Removal [12/2017 - 10/2020]: Procedure

  1. REMOVE INTAKE AIR SURGE TANK ASSEMBLY WITH INTERCOOLER

    Refer to REMOVAL [12/2017 - 10/2020]

  2. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY LH

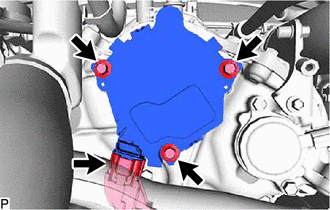

    1. Disconnect the cam timing control motor with EDU assembly LH connector.
      GTY786909Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and cam timing control motor with EDU assembly LH from the No. 2 timing gear cover assembly.
      NOTE:

      If the cam timing control motor with EDU assembly LH has been struck or dropped, replace it.

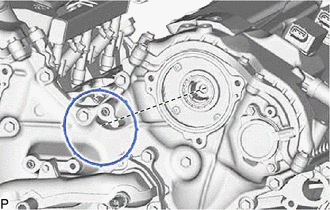

    3. Remove the cam timing control motor O-ring LH from the No. 2 timing gear cover assembly.
      GTY786889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
