Mass Air Flow Meter
›
Components [12/2017 - ]
Components [12/2017 - ]

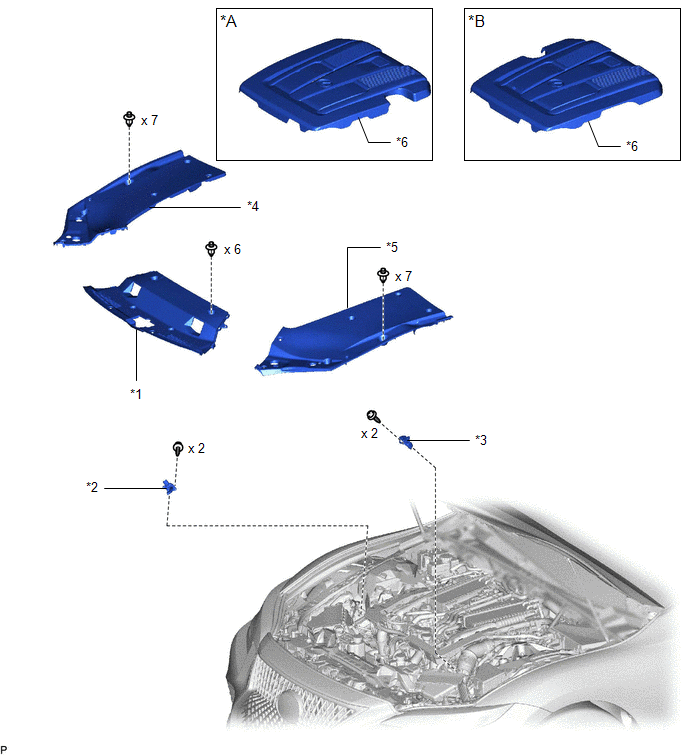

Fig 1: Mass Air Flow Meter Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 2WD
*B
for AWD
*1
LOWER RADIATOR AIR DEFLECTOR
*2
MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 1)
*3
MASS AIR FLOW METER SUB-ASSEMBLY (for Bank 2)
*4
RADIATOR COVER PLATE
*5
UPPER RADIATOR SUPPORT SEAL
*6
V-BANK COVER SUB-ASSEMBLY
