Components [12/2017 - 10/2023]

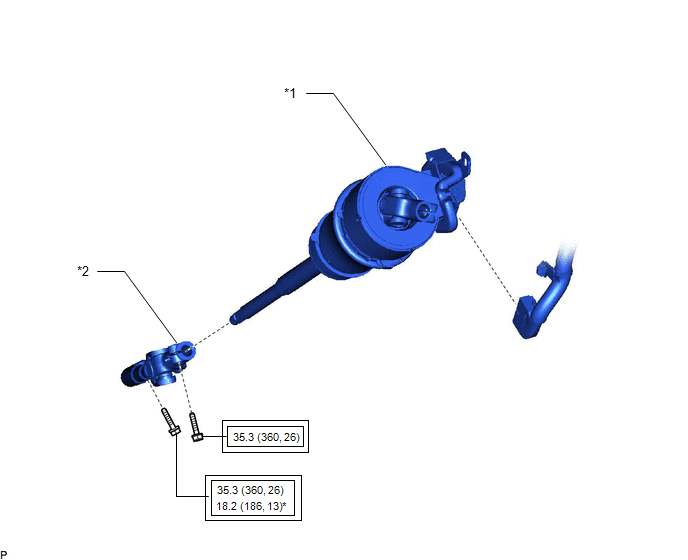

Fig 1: Steering Actuator Replacement Components With Torque Specifications [12/2017 - 10/2023]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING ACTUATOR ASSEMBLY	*2	STEERING SLIDING WITH SHAFT YOKE SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N.m (kgf/cm, ft.lbf)	*	For use with SST and union nut wrench
