Knock Sensor
›
Components [12/2017 - ]
Components [12/2017 - ]

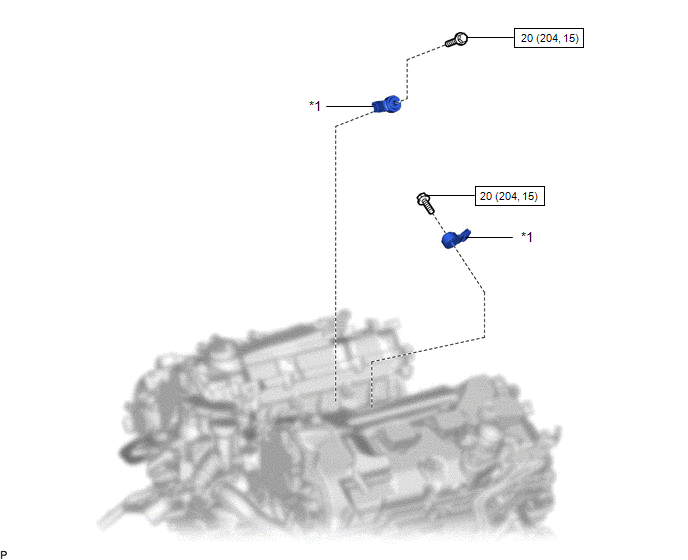

Fig 1: Knock Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
KNOCK CONTROL SENSOR
-
-
N.m (kgf/cm, ft.lbf): Specified torque
-
-
