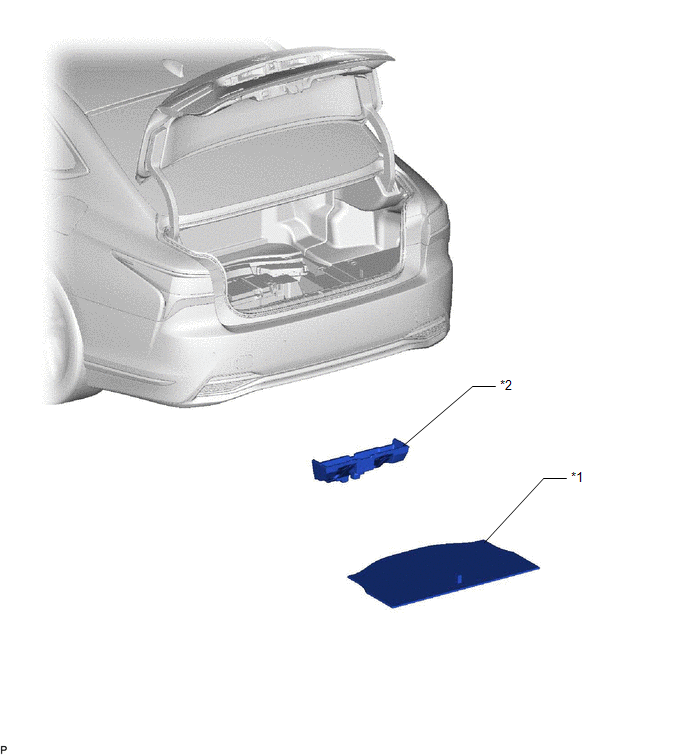

Components [10/2023 - ]
| Callout | Description | Callout | Description |
|---|---|---|---|
| *1 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY | *2 | TOOL BOX |

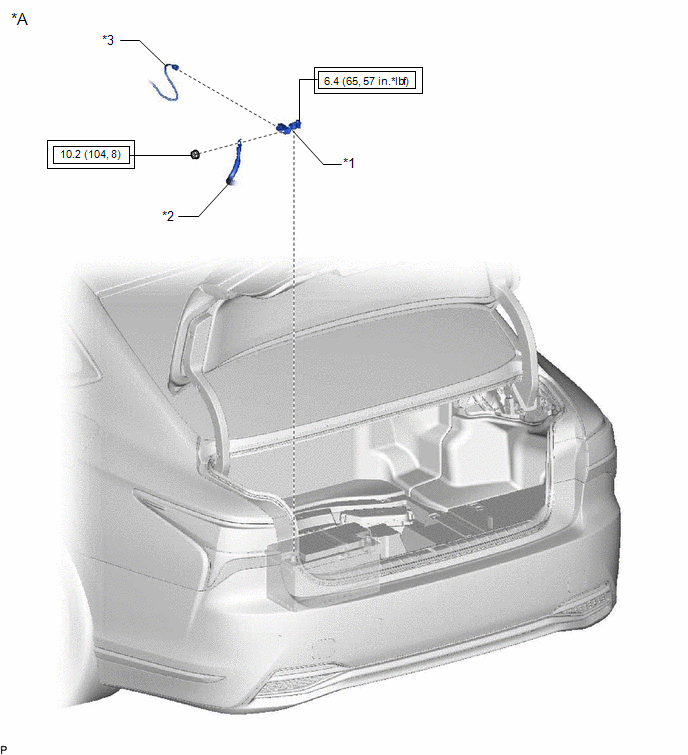

Fig 2: Battery Current Sensor Replacement Components With Torque Specifications [10/2023 - ] (2 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/ Front LiDAR Sensor | - | - |
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | FLOOR WIRE |
| *3 | BATTERY STATE SENSOR ASSEMBLY CONNECTOR | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

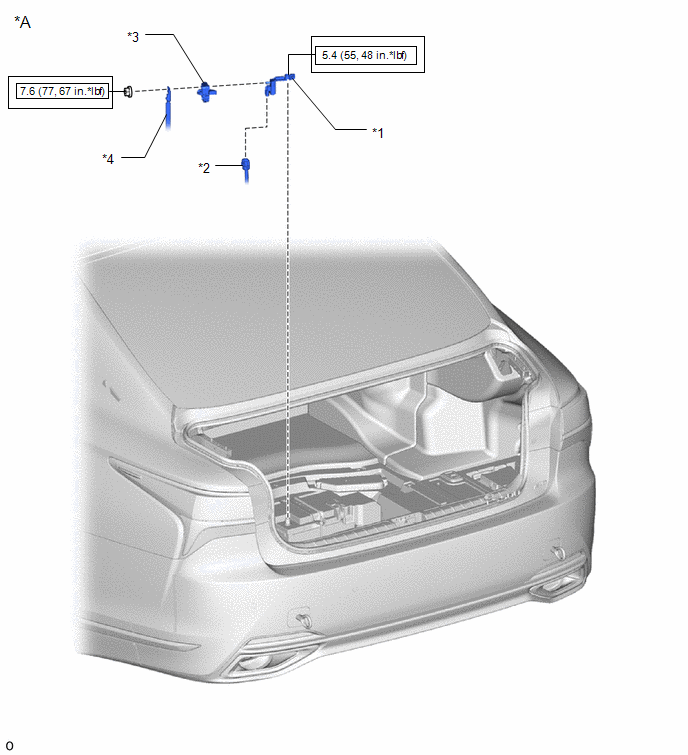

Fig 3: Battery Current Sensor Replacement Components With Torque Specifications [10/2023 - ] (3 Of 3)
| Callout | Description | Callout | Description |
|---|---|---|---|
| *A | w/o Front LiDAR Sensor | - | - |
| *1 | BATTERY STATE SENSOR ASSEMBLY | *2 | BATTERY STATE SENSOR ASSEMBLY CONNECTOR |
| *3 | BATTERY CURRENT SENSOR HOLDER | *4 | FLOOR WIRE |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
