Components [10/2017 - 10/2020]

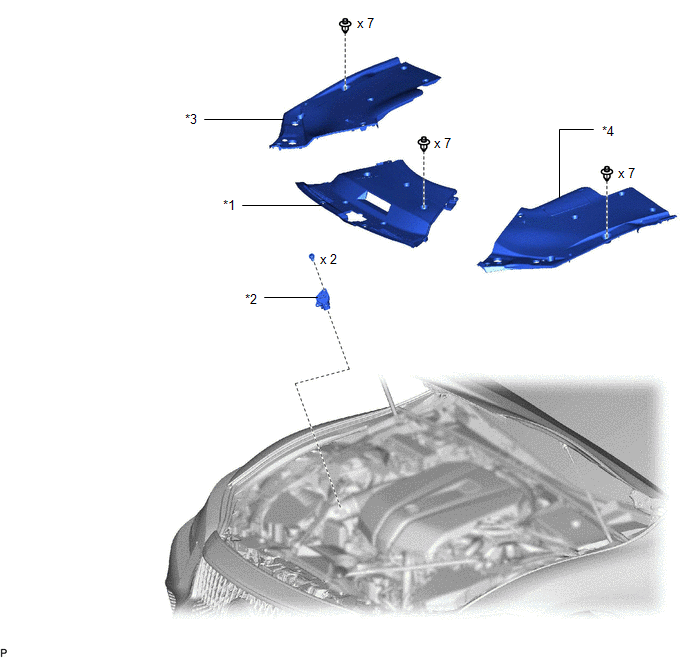

Fig 1: Mass Air Flow Meter Replacement Components [10/2017 - 10/2020]

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	LOWER RADIATOR AIR DEFLECTOR	*2	MASS AIR FLOW METER SUB-ASSEMBLY
*3	RADIATOR COVER PLATE	*4	UPPER RADIATOR SUPPORT SEAL
