Home › Lexus › 2021 › LX 570 › Repair and Diagnosis › Body & Frame › Windows › Power Window Control System (Diagnostics - Introduction) › Power Window Control System › Parts Location [09/2015 - ] › Illustration

Parts Location [09/2015 - ]: Illustration

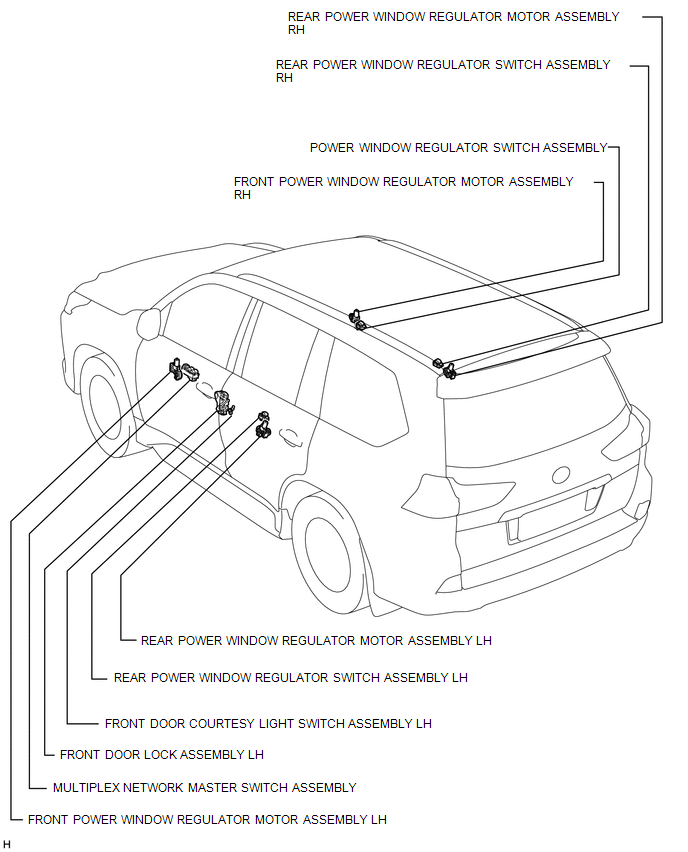

GTY637973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

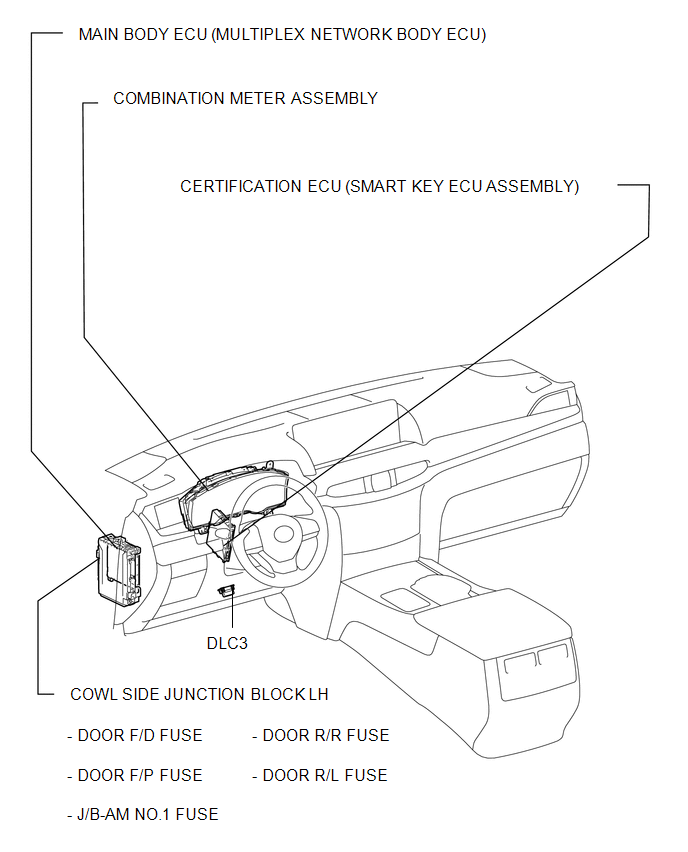

GTY638516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
