Brake Control System (Service Information)
›
Rear Speed Sensor
›
Components [09/2015 - ]
Components [09/2015 - ]

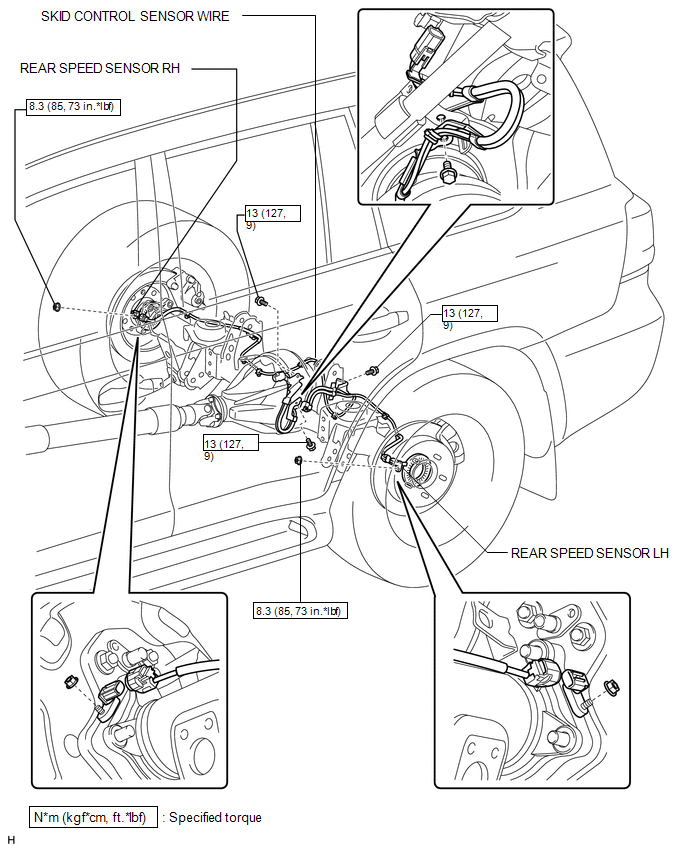

Fig 1: Rear Speed Sensor Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
