Installation [09/2015 - ]: Procedure

  1. INSTALL FUEL INJECTOR ASSEMBLY

    HINT:

    Perform "Inspection After Repairs" after replacing the fuel injector assembly (Refer to INITIALIZATION [09/2015 - ] ).

    1. Attach the 3 clamps to install the No. 6 wire harness to the delivery pipe sub-assembly RH.
    2. Attach the 3 clamps to install the No. 7 wire harness to the delivery pipe sub-assembly LH.
    3. Apply gasoline or spindle oil to a new O-ring and install it to the fuel injector assembly.
      NOTE:

      Make sure that there is no damage or foreign material in the groove of the injector when installing the O-ring.

    4. Connect the injector connector.
    5. Install the fuel injector assembly to the delivery pipe as shown in the illustration.

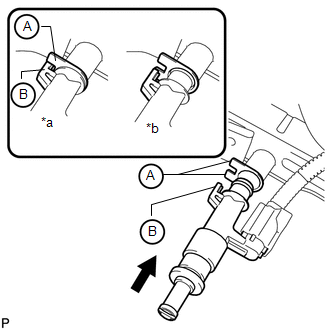

      GTY625214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a CORRECT
      *b INCORRECT
      NOTE:
      • Make sure that there are no scratches or foreign matter in or around the insertion hole of the delivery pipe.
      • When inserting the injector, be careful not to damage the O-ring.
      • Attach the part of the injector labeled B between the parts of the delivery pipe labeled A.
    6. Check that each fuel injector assembly is installed to the delivery pipe facing the direction shown in the illustration.

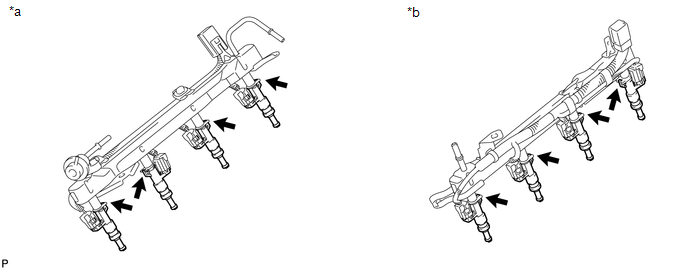

      GTY684928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Fuel Delivery Pipe sub-assembly RH *b Fuel Delivery Pipe sub-assembly LH
  2. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY LH
    1. Install the 2 delivery pipe spacers and 4 insulators to the cylinder head sub-assembly LH.

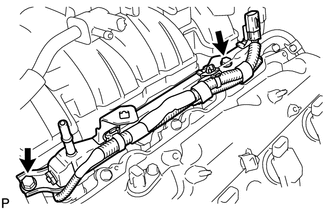

      GTY308865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the delivery pipe (with injectors) to the cylinder head sub-assembly LH.
    3. Install the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:
      GTY672494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Make sure that the part of the injector labeled B is between the parts of the delivery pipe labeled A.

      TEXT IN ILLUSTRATION

      *1 Fuel Delivery Pipe
      *2 Fuel Injector
      *a CORRECT
      *b INCORRECT
    4. Connect the No. 7 wire harness connector.
  3. INSTALL FUEL DELIVERY PIPE SUB-ASSEMBLY RH
    1. Install the 2 delivery pipe spacers and 4 insulators to the cylinder head RH.

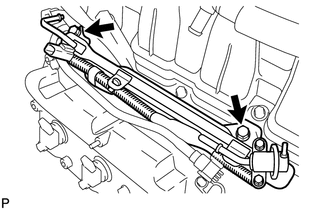

      GTY309983Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the delivery pipe (with injectors) to the cylinder head RH.
    3. Install the 2 bolts.

      Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)

      NOTE:
      GTY672494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Make sure that the part of the injector labeled B is between the parts of the delivery pipe labeled A.

      TEXT IN ILLUSTRATION

      *1 Fuel Delivery Pipe
      *2 Fuel Injector
      *a CORRECT
      *b INCORRECT
    4. Connect the No. 6 wire harness connector.

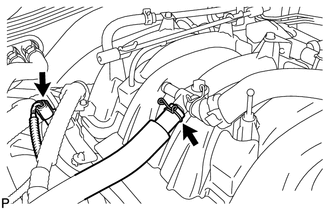

      GTY308864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Connect the ventilation hose.
  4. CONNECT NO. 1 FUEL HOSE
    1. Connect the No. 1 fuel hose to the fuel delivery pipe sub-assembly LH (Refer to PRECAUTION [09/2015 - ] ).

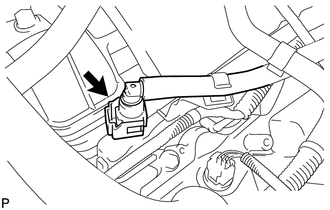

      GTY572051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. CONNECT NO. 1 FUEL TUBE
    1. LH Side:

      Connect the No. 1 fuel tube to the delivery pipe assembly sub-assembly LH (Refer to PRECAUTION [09/2015 - ] ).

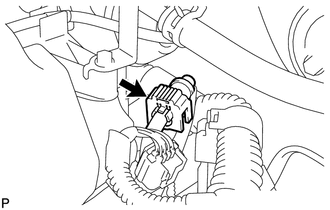

      GTY572052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. RH Side:

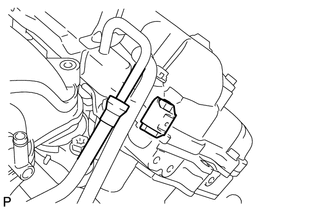

      Connect the No. 1 fuel tube to the delivery pipe sub-assembly RH (for metallic type) (Refer to PRECAUTION [09/2015 - ] ).

      GTY588758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT NO. 2 FUEL TUBE
    1. Connect the No. 2 fuel tube to the fuel pressure regulator assembly (Refer to PRECAUTION [09/2015 - ] ).

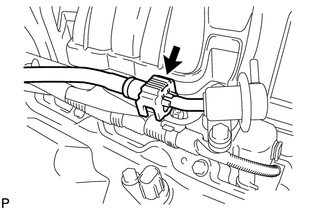

      GTY604975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

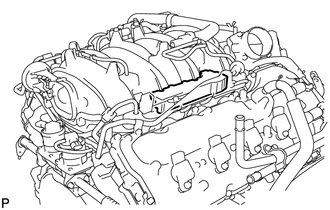

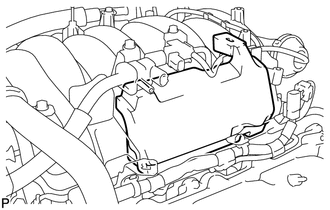

    1. GTY604650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 1 engine cover sub-assembly.

  8. INSTALL NO. 3 ENGINE COVER
    1. GTY548421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Install the No. 3 engine cover.

  9. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [09/2015 - 08/2019] , or refer to INITIALIZATION [08/2019 - ] ).

  11. INSPECT FOR FUEL LEAK
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG) and Techstream main switch on.
      NOTE:

      Do not start the engine.

    3. Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Fuel Pump / Speed.
    4. Check that there are no fuel leaks after doing maintenance anywhere on the fuel system.
  12. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 69

  13. INSTALL UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 14
