Removal [09/2015 - ]: Procedure

  1. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH

    Refer to PROCEDURE - Step 1

  2. REMOVE FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 4

  4. REMOVE NO. 2 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 5

  5. DRAIN ENGINE OIL

    See step  1 [09/2015 - 08/2020], or see step  1 [08/2020 - ]

  6. DISCONNECT OIL COOLER TUBE

    Refer to PROCEDURE - Step 55

  7. REMOVE ENGINE OIL LEVEL SENSOR
    1. Disconnect the oil level sensor connector.

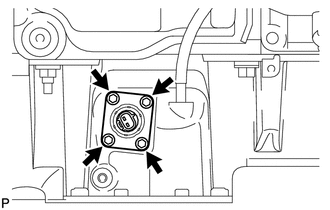

    2. GTY384794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Remove the 4 bolts and oil level sensor.

    3. GTY383057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Cutting Position
      *2 Supply Part

      Cut off the gasket as shown in the illustration.

    4. Remove the gasket from the oil level sensor.

      HINT:

      After cutting away the parts of the gasket shown in the illustration, remove only the outer part of the gasket.
