Components [09/2015 - ]

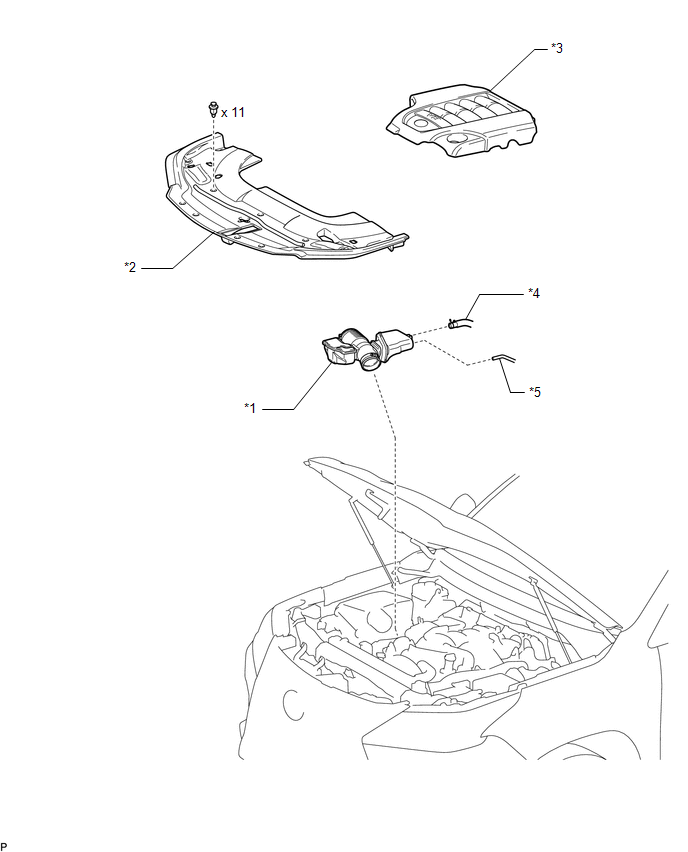

Fig 1: Fuel Injector Replacement Components
GTY964513Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AIR CLEANER HOSE ASSEMBLY *2 UPPER RADIATOR SUPPORT SEAL
*3 V-BANK COVER SUB-ASSEMBLY *4 VENTILATION HOSE ASSEMBLY
*5 VACUUM HOSE - -

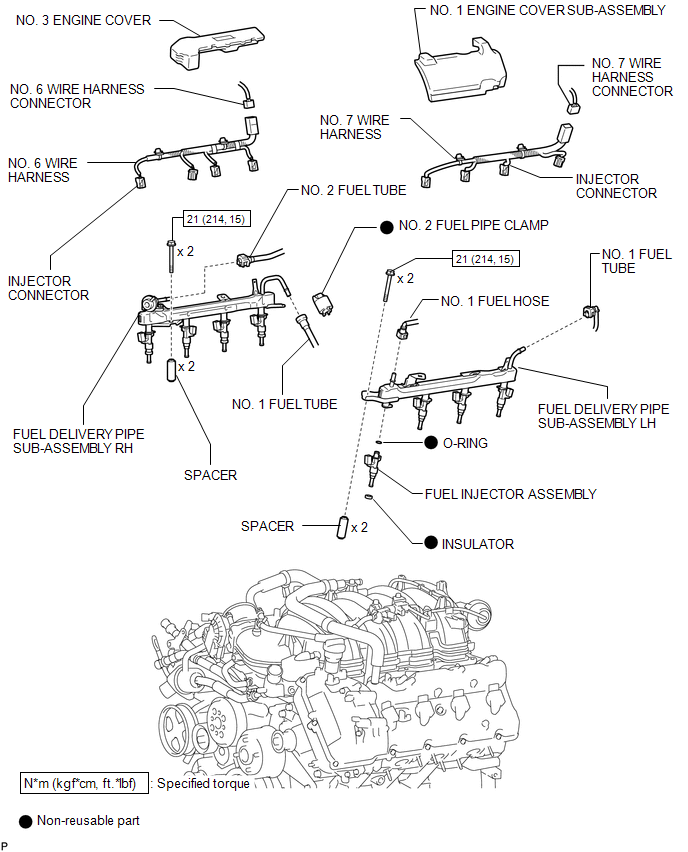

Fig 2: Fuel Injector Replacement Components With Torque Specifications (2 Of 2)
GTY679552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
