Engine Control System (Service Information)
›
Accelerator Pedal
›
Components [09/2015 - ]
Components [09/2015 - ]

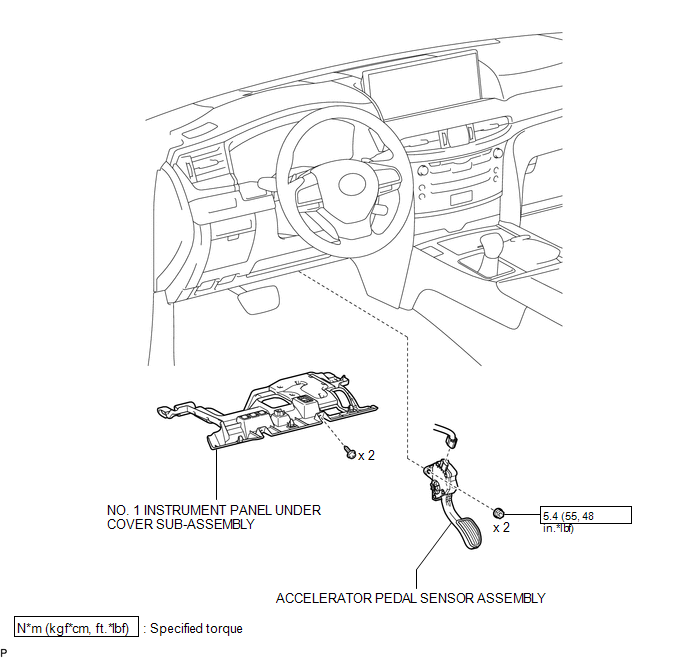

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
