Installation [09/2015 - ]: Procedure

  1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 1)

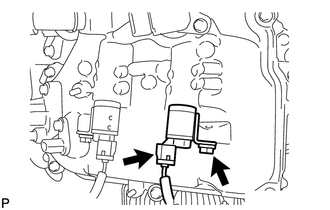

    GTY611339Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new O-ring to the oil control valve.
    2. Apply a light coat of engine oil to the O-ring.
    3. Install the oil control valve with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the oil control valve (connecting surface with cylinder head cover).
      • Be careful that the O-ring is not cracked or moved out of place when installing the oil control valve.
    4. Connect the oil control valve connector.
  2. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 1)

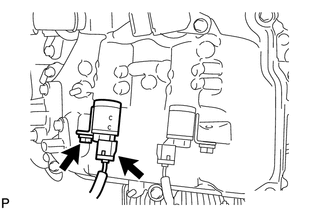

    GTY592033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new O-ring to the oil control valve.
    2. Apply a light coat of engine oil to the O-ring.
    3. Install the oil control valve with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the oil control valve (connecting surface with cylinder head cover).
      • Be careful that the O-ring is not cracked or moved out of place when installing the oil control valve.
    4. Connect the oil control valve connector.
  3. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Intake Side of Bank 2)

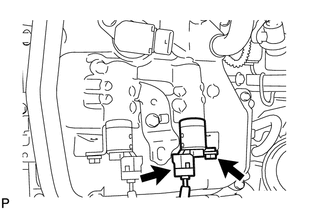

    GTY609473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new O-ring to the oil control valve.
    2. Apply a light coat of engine oil to the O-ring.
    3. Install the oil control valve with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the oil control valve (connecting surface with cylinder head cover).
      • Be careful that the O-ring is not cracked or moved out of place when installing the oil control valve.
    4. Connect the oil control valve connector.
  4. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Exhaust Side of Bank 2)

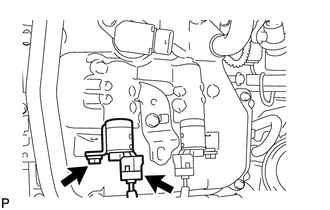

    GTY611346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install a new O-ring to the oil control valve.
    2. Apply a light coat of engine oil to the O-ring.
    3. Install the oil control valve with the bolt.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      NOTE:
      • Do not allow foreign matter to contact the oil seal face of the oil control valve (connecting surface with cylinder head cover).
      • Be careful that the O-ring is not cracked or moved out of place when installing the oil control valve.
    4. Connect the oil control valve connector.
  5. INSTALL AIR CLEANER HOSE ASSEMBLY

    Refer to PROCEDURE - Step 10

  6. INSTALL V-BANK COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 69

  7. INSTALL UPPER RADIATOR SUPPORT SEAL

    Refer to PROCEDURE - Step 14
