Installation [09/2015 - ]: Procedure

1. Coat the O-ring of the temperature sensor with ATF.

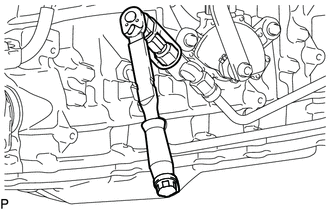

2. Using a 19 mm deep socket wrench, install the temperature sensor.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 15 N*m (153 kgf*cm, 11 ft.*lbf)

   NOTE:

   • When reusing the temperature sensor, inspect the O-ring.
   • Make sure that the O-ring is not cracked or jammed when installing the temperature sensor.
3. Connect the temperature sensor connector.

(Refer to ADJUSTMENT [09/2015 - 08/2019] , or refer to ADJUSTMENT [08/2019 - 08/2020] , or refer to ADJUSTMENT [08/2020 - ] )
