Components [09/2017 - 05/2019]

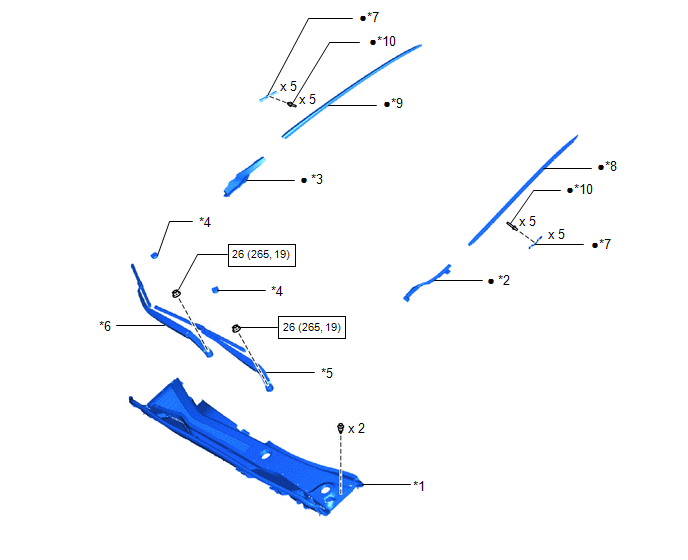

Fig 1: Windshield Glass Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY	*2	FRONT FENDER TO COWL SIDE SEAL LH
*3	FRONT FENDER TO COWL SIDE SEAL RH	*4	FRONT WIPER ARM HEAD CAP
*5	FRONT WIPER ARM LH	*6	FRONT WIPER ARM RH
*7	NO. 1 WINDSHIELD OUTSIDE MOULDING CLIP	*8	WINDSHIELD OUTSIDE MOULDING LH
*9	WINDSHIELD OUTSIDE MOULDING RH	*10	RIVET
	N*m (kgf*cm, ft.*lbf): Specified torque	•	Non-reusable part

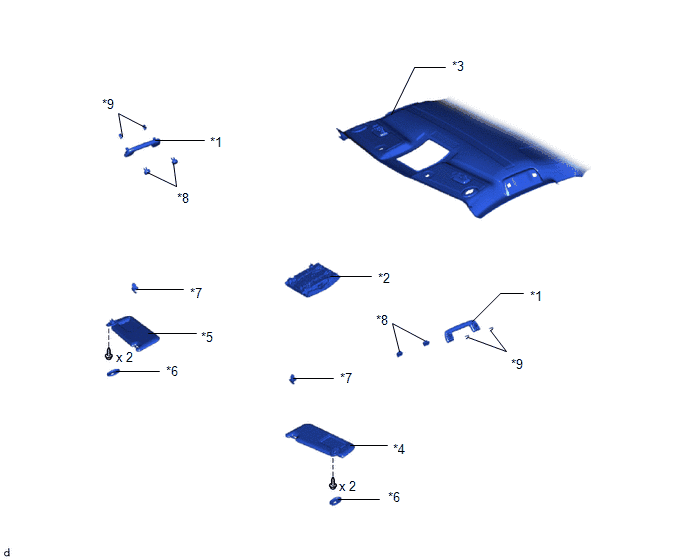

Fig 2: Windshield Glass Replacement Components (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ASSIST GRIP SUB-ASSEMBLY	*2	MAP LIGHT ASSEMBLY
*3	ROOF HEADLINING ASSEMBLY	*4	VISOR ASSEMBLY LH
*5	VISOR ASSEMBLY RH	*6	VISOR BRACKET COVER
*7	VISOR HOLDER	*8	ASSIST GRIP COVER
*9	CLIP	-	-

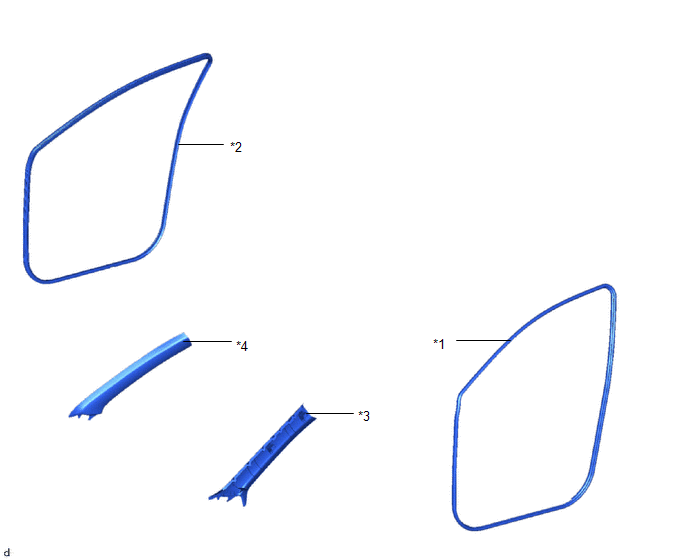

Fig 3: Windshield Glass Replacement Components (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT DOOR OPENING TRIM WEATHERSTRIP LH	*2	FRONT DOOR OPENING TRIM WEATHERSTRIP RH
*3	FRONT PILLAR GARNISH ASSEMBLY LH	*4	FRONT PILLAR GARNISH ASSEMBLY RH

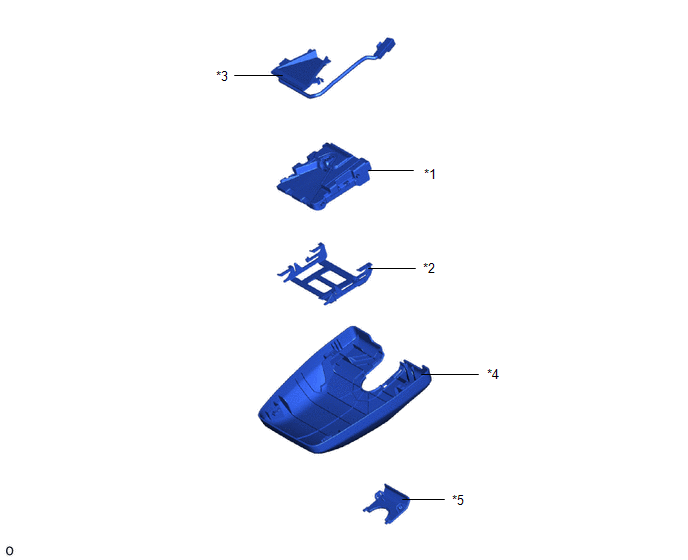

Fig 4: Windshield Glass Replacement Components 4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FORWARD RECOGNITION CAMERA	*2	FORWARD RECOGNITION LATCH
*3	FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY	*4	NO. 1 FORWARD RECOGNITION COVER
*5	NO. 2 FORWARD RECOGNITION COVER	-	-

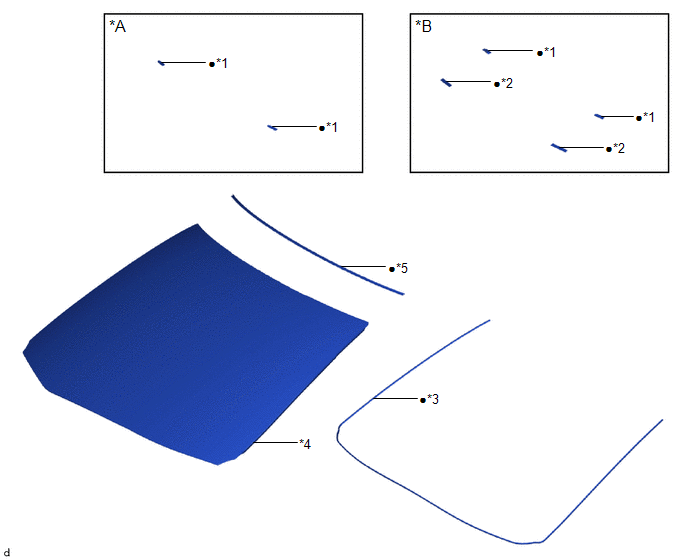

Fig 5: Windshield Glass Replacement Components (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for 1-piece Type	*B	for 2-piece Type
*1	NO. 1 WINDSHIELD GLASS STOPPER	*2	NO. 2 WINDSHIELD GLASS STOPPER
*3	WINDOW GLASS ADHESIVE DAM	*4	WINDSHIELD GLASS
*5	WINDSHIELD OUTSIDE MOULDING	-	-
•	Non-reusable part	-	-
