Brake Control System - Service Information
›
Steering Angle Sensor
›
Components [10/2014 - ]
Components [10/2014 - ]

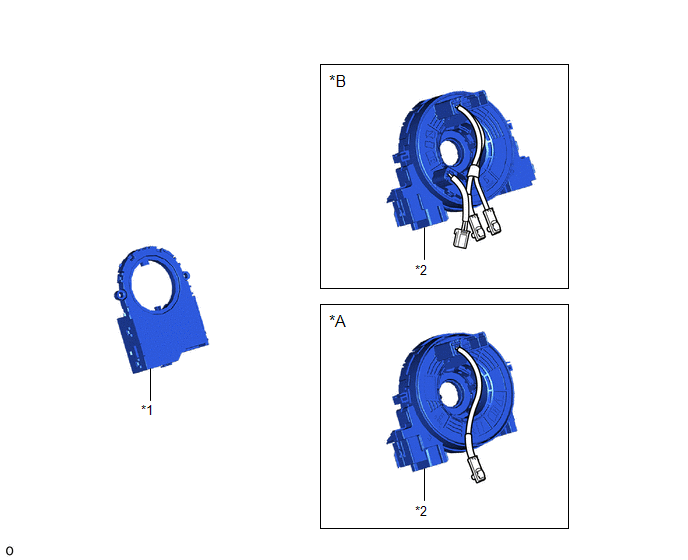

Fig 1: Steering Angle Sensor Bleeding Sequence Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout
Description
Callout
Description
*A
w/o Steering Heater
*B
w/ Steering Heater
*1
STEERING SENSOR
*2
SPIRAL CABLE SUB-ASSEMBLY
