Components [10/2014 - ]

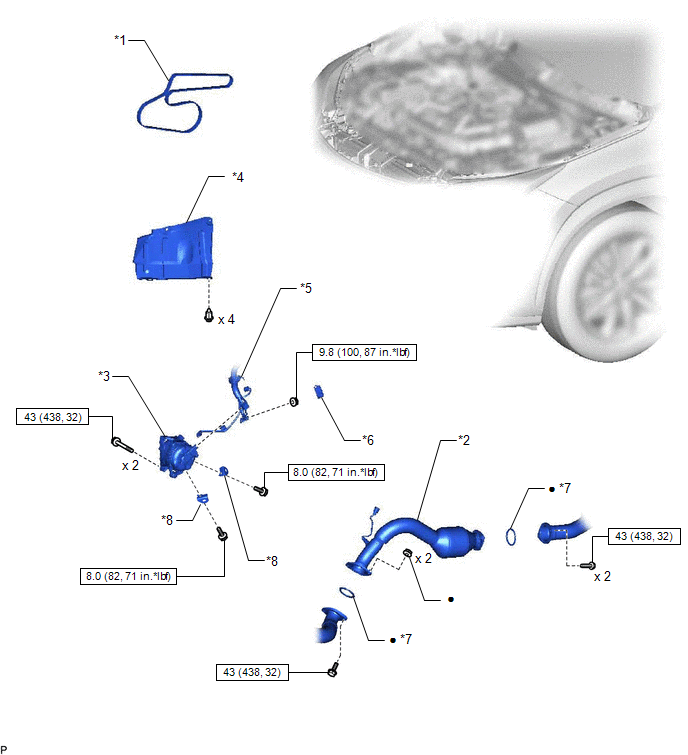

| Callout | Description | Callout | Description |
| *1 | FAN AND GENERATOR V BELT | *2 | FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY |
| *3 | GENERATOR ASSEMBLY | *4 | REAR ENGINE UNDER COVER RH |
| *5 | WIRE HARNESS | *6 | TERMINAL CAP |
| *7 | GASKET | *8 | WIRE HARNESS CLAMP BRACKET |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |

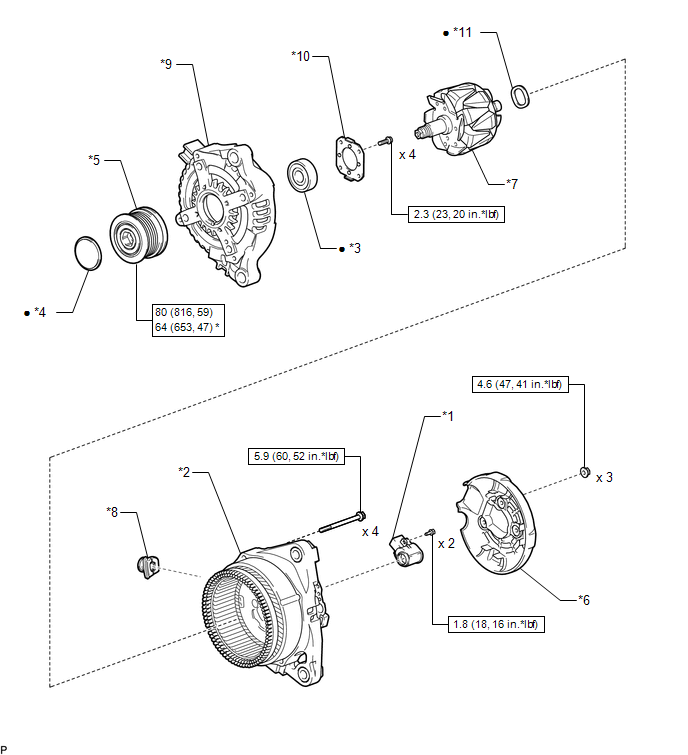

| Callout | Description | Callout | Description |
| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR DRIVE END FRAME BEARING | *4 | GENERATOR PULLEY CAP |
| *5 | GENERATOR PULLEY WITH CLUTCH | *6 | GENERATOR REAR END COVER |
| *7 | GENERATOR ROTOR ASSEMBLY | *8 | GENERATOR TERMINAL INSULATOR |
| *9 | GENERATOR DRIVE END FRAME | *10 | RETAINER PLATE |
| *11 | WASHER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST | |
| • | Non-reusable part | - | - |
