Components [10/2014 - ]

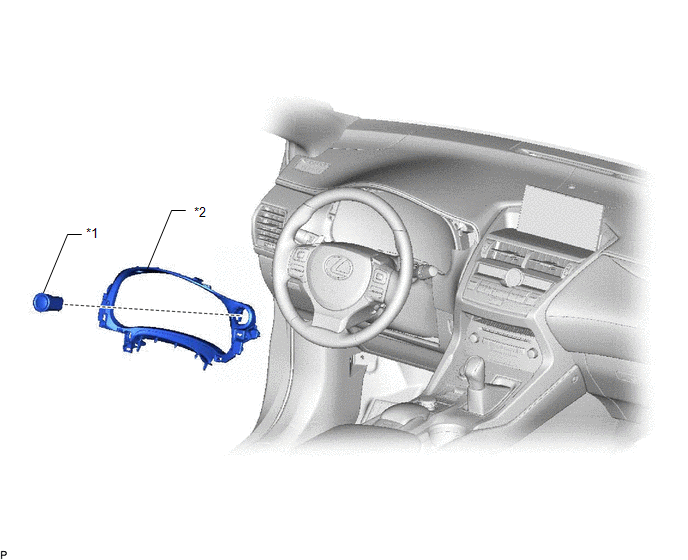

Fig 1: Engine Switch Replacement Components

GTY513123

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

ENGINE SWITCH

*2

INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
