Components [10/2014 - ]

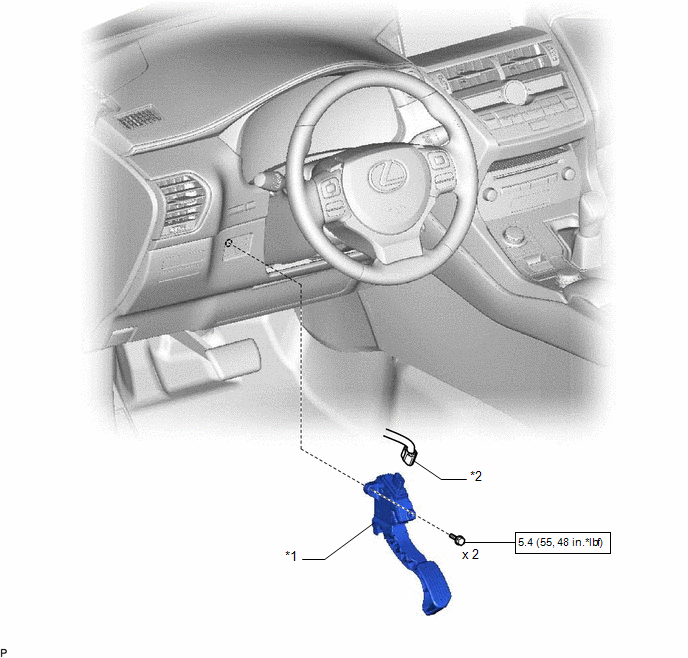

Fig 1: Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ACCELERATOR PEDAL SENSOR ASSEMBLY	*2	ACCELERATOR PEDAL SENSOR CONNECTOR
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
