Components [10/2014 - ]

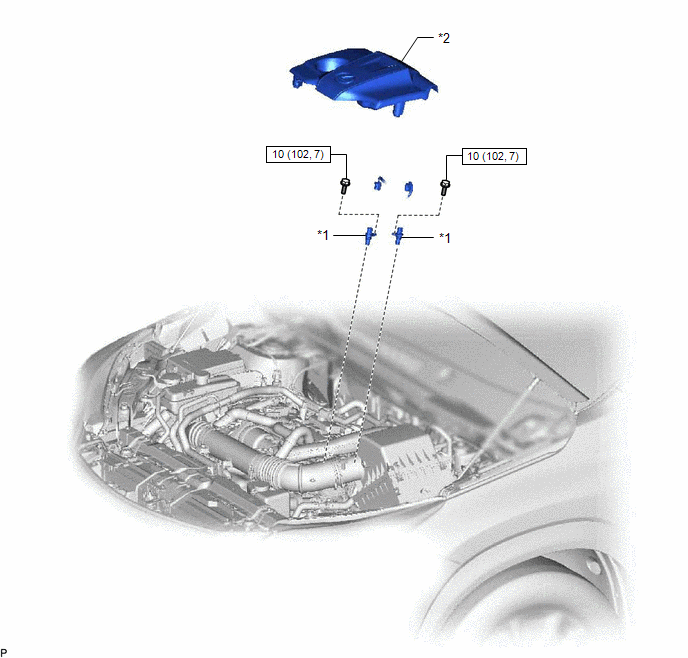

Fig 1: Camshaft Position Sensor Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	CAMSHAFT POSITION SENSOR	*2	NO. 1 ENGINE COVER SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
