Components [10/2014 - ]

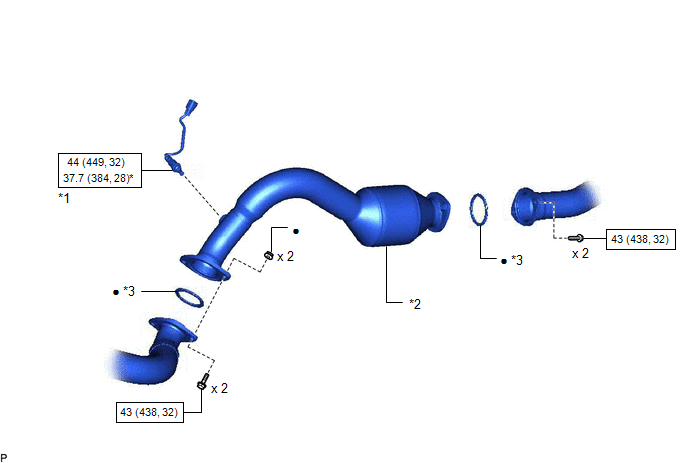

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY497809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 HEATED OXYGEN SENSOR *2 FRONT NO. 2 EXHAUST PIPE SUB-ASSEMBLY
*3 GASKET - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with SST
• Non-reusable part - -
