Removal [10/2014 - ]: Procedure

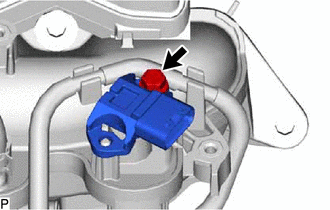

  1. REMOVE NO. 1 TURBO PRESSURE SENSOR
    1. Disconnect the No. 1 turbo pressure sensor connector.
    2. Remove the bolt and No. 1 turbo pressure sensor.
      GTY506716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

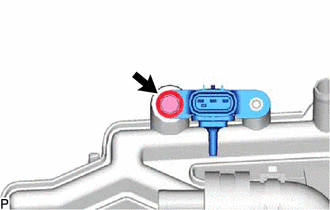

  2. REMOVE NO. 2 TURBO PRESSURE SENSOR
    1. Disconnect the No. 2 turbo pressure sensor connector.
    2. Detach the clamp to disconnect the vacuum hose from the intake manifold.
    3. Remove the bolt and No. 2 turbo pressure sensor.
      GTY506717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disconnect the vacuum hose from the No. 2 turbo pressure sensor.
