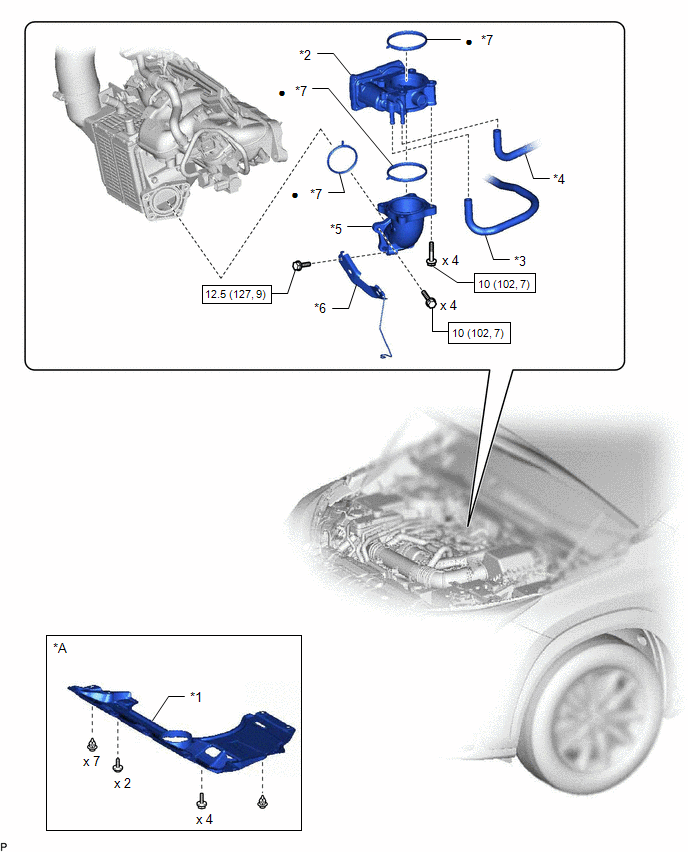

Components [10/2014 - ]
| Callout | Description | Callout | Description |
| *A | for Sport Package | - | - |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | THROTTLE BODY WITH MOTOR ASSEMBLY |
| *3 | NO. 2 WATER BY-PASS HOSE | *4 | NO. 11 WATER BY-PASS HOSE |
| *5 | NO. 2 AIR TUBE | *6 | WIRE HARNESS BRACKET |
| *7 | GASKET | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
