Components [10/2014 - ]

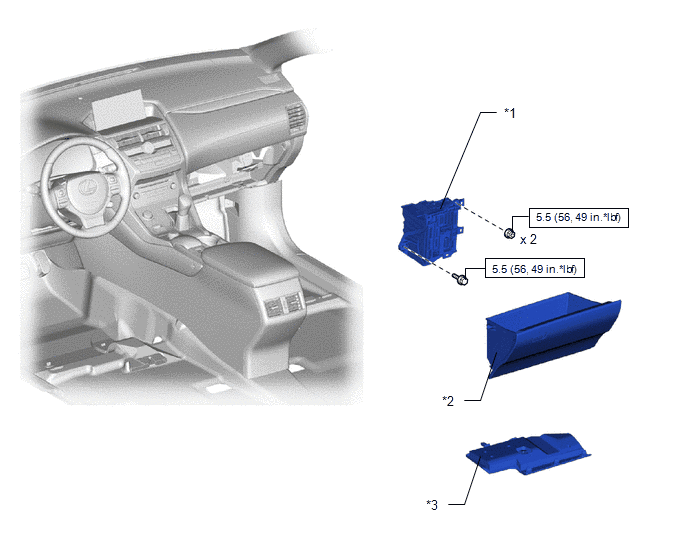

Fig 1: 4WD Control ECU Replacement Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	ECU INTEGRATION BOX RH	*2	GLOVE COMPARTMENT DOOR ASSEMBLY
*3	NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

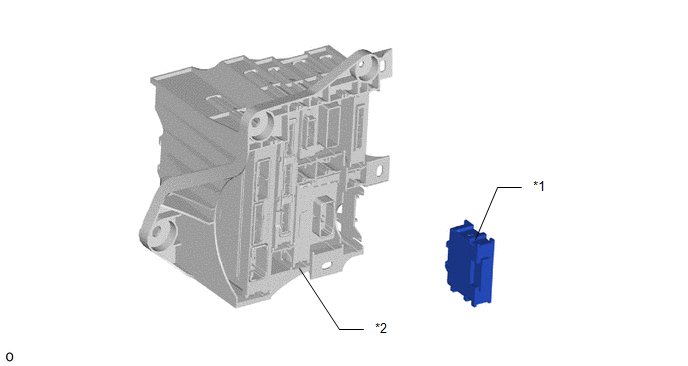

Fig 2: 4WD Control ECU Replacement Components (2 Of 2)

4WD ECU ASSEMBLY

ECU INTEGRATION BOX RH
