Installation [09/2017 - ]: Procedure

1. Pass the wire harness under the rib as shown in the illustration.

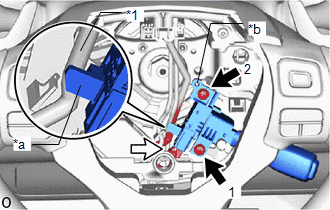

   Fig 1: Cruise Control Main Switch Components With Screw Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Wire Harness
   *a	Rib
   *b	Guide
   	Connector
   	Screw

2. Attach the guide.
3. Temporarily install the cruise control main switch with the 2 screws.
4. Tighten the 2 screws to install the cruise control main switch.

   HINT:

   Tighten the screws in the order shown in the illustration.

   Torque: 2.4 N*m (24 kgf*cm, 21 in.*lbf)

5. Connect the connector.

Refer to INSTALLATION [10/2014 - 05/2019] Refer to INSTALLATION [05/2019 - 07/2020] Refer to INSTALLATION [07/2020 - ]
