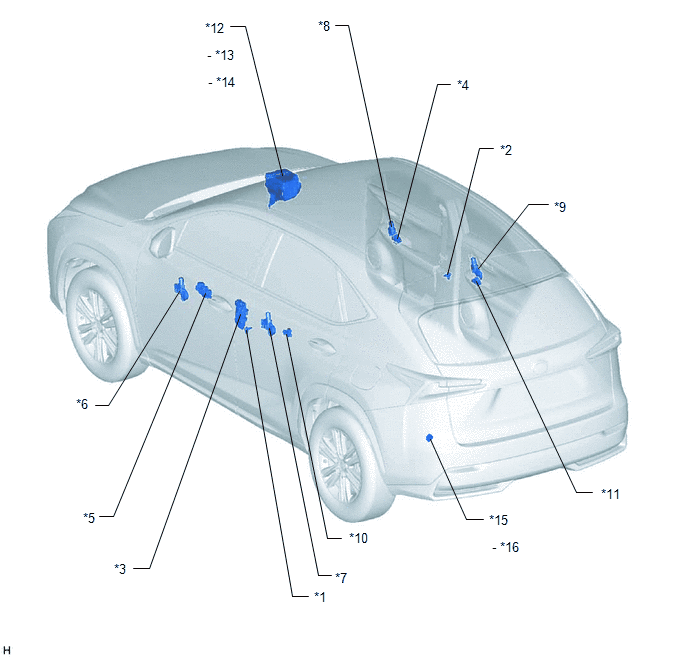

| *1 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
*2 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 |
FRONT DOOR LOCK ASSEMBLY LH |
*4 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY |
| *5 |
MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY |
*6 |
FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH |
| *7 |
REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH |
*8 |
FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
| *9 |
REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
*10 |
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear LH Door) |
| *11 |
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY (for Rear RH Door) |
*12 |
NO. 2 ENGINE ROOM RELAY BLOCK |
| *13 |
DOOR R/R FUSE |
*14 |
ECU-B NO. 2 FUSE |
| *15 |
FUSE BLOCK |
*16 |
ECU-B NO. 3 FUSE |
