Removal [10/2014 - ]: Procedure

Refer to REMOVAL [10/2014 - 09/2017] , or refer to REMOVAL [09/2017 - 05/2019] , or refer to REMOVAL [05/2019 - ]

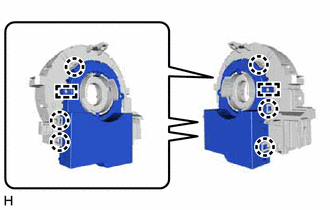

1. Disengage the 6 claws and 2 pins, and remove the steering sensor from the spiral cable sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the claws and pins of the spiral cable sub-assembly.
