Components [10/2014 - ]

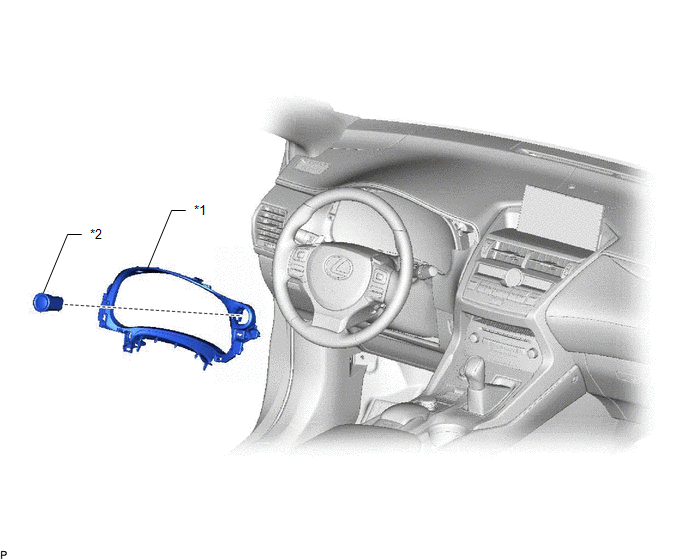

Fig 1: Identifying Power Switch Replacement Components

GTY520936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

*2

POWER SWITCH
