Removal [10/2014 - ]: Procedure

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 21 [10/2014 - 09/2016], or refer to PROCEDURE - Step 21 [09/2016 - 05/2019], or refer to PROCEDURE - Step 21 [05/2019 - ]

  2. REMOVE CAMSHAFT POSITION SENSOR

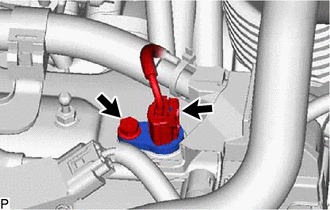

    GTY512126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt and camshaft position sensor.
