Components [10/2014 - ]

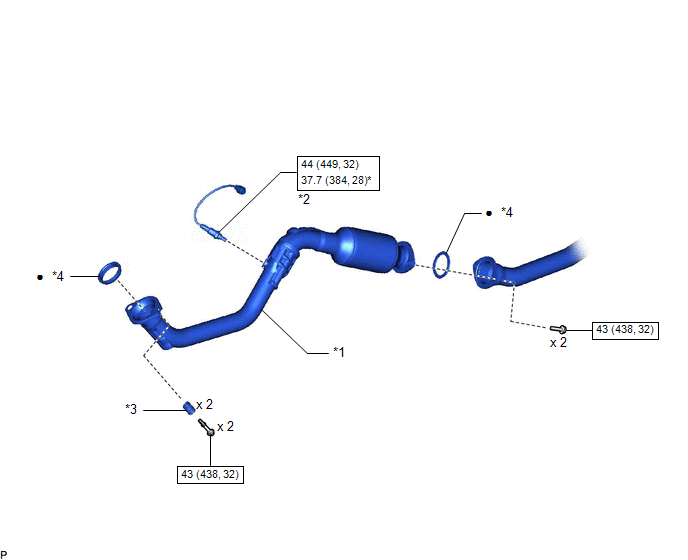

Fig 1: Heated Oxygen Sensor Replacement Components With Torque Specifications
GTY519410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT EXHAUST PIPE SUB-ASSEMBLY *2 HEATED OXYGEN SENSOR
*3 COMPRESSION SPRING *4 GASKET
N*m (kgf*cm, ft.*lbf): Specified torque * For use with SST
• Non-reusable part - -
