Removal [10/2014 - ]: Procedure

  1. REMOVE FRONT EXHAUST PIPE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  2. REMOVE HEATED OXYGEN SENSOR

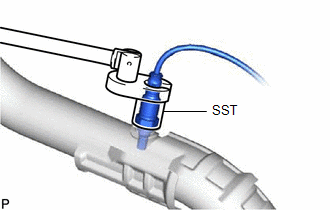

    1. Using SST, remove the heated oxygen sensor.
      GTY511098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00011
