Pre-Collision System Warning Buzzer
›
Components [09/2017 - ]
Components [09/2017 - ]

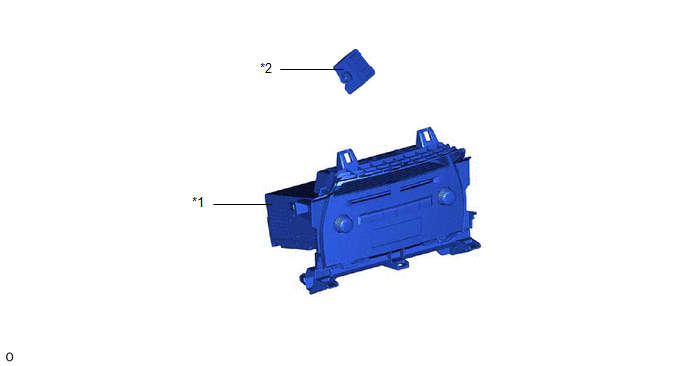

Fig 1: Pre-Collision System Warning Buzzer Replacement Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
RADIO RECEIVER ASSEMBLY
*2
SKID CONTROL BUZZER ASSEMBLY (PRE-COLLISION SYSTEM WARNING BUZZER)
