Removal [10/2014 - ]: Procedure

  1. REMOVE RADIO RECEIVER ASSEMBLY

    Refer to REMOVAL [10/2014 - 09/2017] , or refer to REMOVAL [09/2017 - 05/2019] , or refer to REMOVAL [05/2019 - ]

  2. REMOVE SKID CONTROL BUZZER ASSEMBLY (PRE-COLLISION SYSTEM WARNING BUZZER)

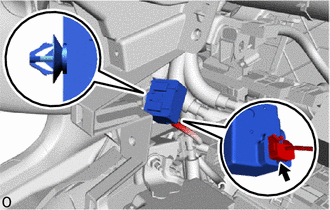

    1. Using a clip remover, disconnect the clamp.
    2. Disconnect the connector and remove the skid control buzzer assembly (pre-collision system warning buzzer).
      GTY505310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
