Components [10/2015 - ]

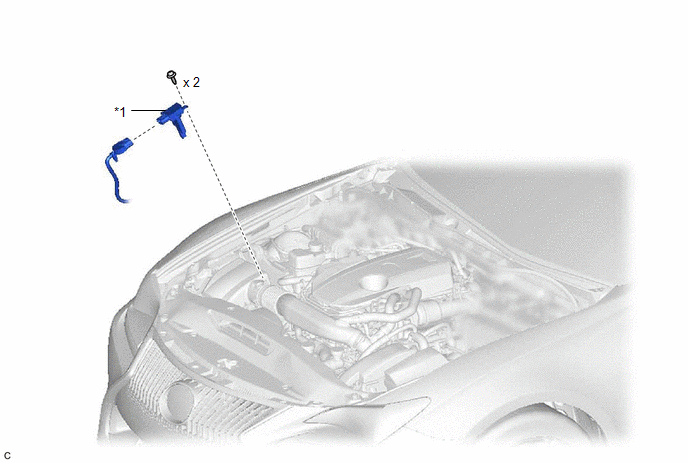

Fig 1: Mass Air Flow Meter Replacement Components
GTY614706Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 INTAKE MASS AIR FLOW METER SUB-ASSEMBLY - -
